Meat cold room helps meat processors, 대리점, 슈퍼마켓, and food businesses keep meat safe, 신선한, and stable during storage and distribution.
The right temperature, 습기, 기류, and equipment setup can reduce spoilage, limit weight loss, and support better product quality.
This guide explains how to choose the right meat cold room for chilled meat, 냉동 고기, and blast freezing applications.
It also covers storage temperature, storage time, room design, common problems, and the key information needed before system selection.
Meat Storage Temperatures
The correct temperature depends on product type, storage goal, packaging method, and turnover cycle.
Room temperature and product core temperature are not always the same, so the design should follow the actual process requirement.
| 제품 유형 | Storage purpose | 실온 | Product target | 노트 |
|---|---|---|---|---|
| Fresh meat / carcass meat | Short-term chilling | 0 ~ 4°C | Close to chilled condition | Suitable for short holding and fast distribution. |
| Chilled pork, 소고기, lamb cuts | Short-term | 0 ~ 4°C, depending on process | Stable chilled condition | Good for retail and short cold chain use. |
| Frozen meat | Long-term | Around -18°C | Short time frozen | Common target for frozen stock. |
| Blast freezing process | Fast freezing before frozen storage | -35°C ~ -40°C | Product moves toward -18°C to -20°C | Helps reduce ice crystal damage and supports faster pull-down. |
| Frozen storage after blast freezing | Long-term | -18° C ~ -25 ° C | Maintain frozen condition | Used after product reaches the required frozen state. |
Chilled Meat vs Frozen Meat
Chilled meat suits short-term storage and fast turnover.
Businesses often choose chilled storage when they want to keep a fresh appearance and supply retail or local distribution quickly.
Frozen meat suits long-term storage, export, and inventory backup.
Businesses use frozen storage when they need a longer shelf life and more flexibility in transport and stock planning.
The two systems don’t serve the same purpose:
A chilled room supports short holding, while a freezer room supports long storage, and a blast freezer supports fast freezing before long-term frozen storage.

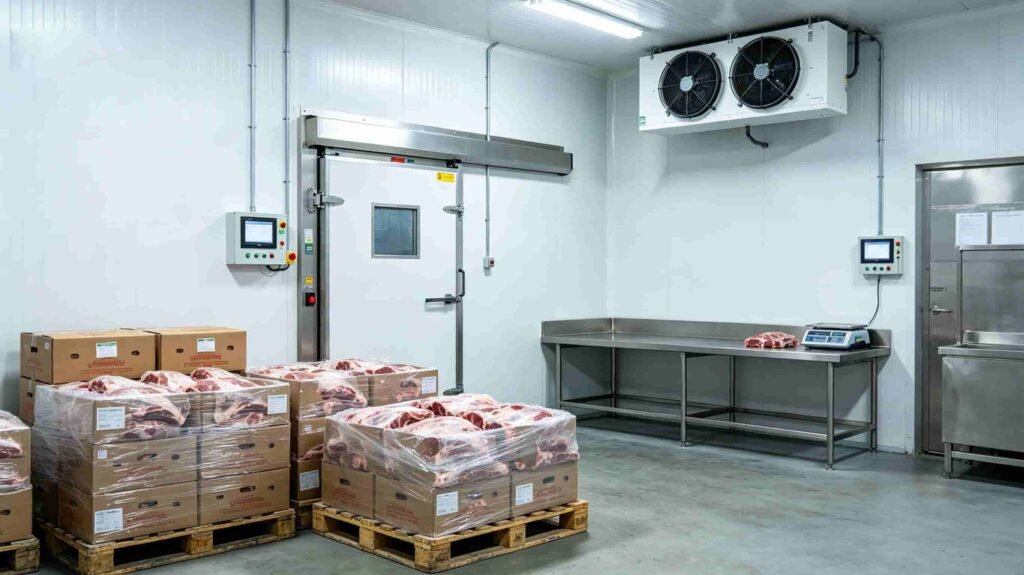

Chilled Meat
Key Parameters for Meat Cold Room
Good meat storage doesn’t depend on temperature alone.
습기, 기류, room loading, 단열재, 배수, and door opening frequency all affect quality, weight loss, 위생, and power use.
1. 온도 범위
The room setpoint should match the product process.
냉장실, 냉동실, and blast freezer room need different temperature levels, and the design should focus on product temperature target rather than empty-room temperature alone.
2. 상대습도
High relative humidity helps reduce excessive weight loss during chilling.
We recommend fairly high humidity: 90 ~ 95% RH, during chilling operations to help limit dehydration loss.
3. Airflow and air distribution
Airflow should cool the product evenly, but it shouldn’t dry the surface too aggressively.
Low humidity and poor air control can remove moisture from the product and reduce both weight and quality.
4. Insulation panel thickness
Panel thickness should match the room temperature, local ambient climate, 및 설치 조건.
A colder room and a hotter climate usually need stronger insulation and tighter vapor sealing.
5. Floor and drainage
Meat cold rooms need hygienic flooring, proper drainage slope, and easy cleaning access.
In low-temperature rooms, the floor design also needs enough insulation to reduce condensation and long-term structural problems.
6. Door type and traffic frequency
Frequent door opening increases heat gain, moisture entry, frost formation, and energy use.
The right door size, 스트립 커튼, air curtain, or traffic control plan can help keep room conditions stable.
How to Choose the Right Meat Cold Room Equipment?
Equipment selection should start with the product and process, not just room size.
A correct design needs product type, inlet temperature, daily loading, 목표 온도, storage cycle, and local ambient temperature.
Chiller room or freezer room?
Choose a chiller room for fresh or chilled meat with short holding time. Choose a freezer room for long-term frozen storage.
Do you need a blast freezer?
Choose a blast freezer when you need fast pull-down, better freezing quality, and lower risk of large ice crystal damage.
Standard freezer storage doesn’t replace blast freezing in projects that require fast freezing performance.
How should you select the refrigeration unit?
응축 장치 should match room load, 제품로드, pull-down requirement, and ambient conditions.
단위 냉각기 should match room height, humidity target, frosting condition, and airflow requirement.
What about controls and alarms?
Meat cold room should include stable temperature control and practical monitoring.
Alarm systems, data logging, and remote monitoring become more important when the room stores high-value meat or runs with low staffing.
Common Problems and How to Avoid Them?
Many meat storage problems come from: Poor temperature control, poor airflow, low humidity, or wrong equipment matching.
A room can reach the set temperature and still fail to protect the product properly.
Problem 1: Meat loses too much weight
Likely causes include low humidity, high air velocity, long storage time, and frequent door opening.
Better humidity control and better airflow design can help reduce dehydration loss.
Problem 2: Meat surface dries out
This problem often appears when airflow is too strong or room humidity is too low.
Operators should check air distribution, 제품 스태킹, and evaporator selection.
Problem 3: Product cools too slowly after loading
This usually means the room faces a high product heat load, not just a room air problem.
The design should check daily loading quantity, inlet product temperature, pull-down time, and refrigeration capacity.
Problem 4: Frost builds up too fast on the evaporator
Frequent door opening and high moisture entry often increase frost load.
Better traffic control, tighter doors, and correct defrost planning can improve performance.
Problem 5: Room temperature is not even
Poor airflow layout, bad stacking practice, or wrong evaporator arrangement can create hot spots and uneven product cooling.
The design should consider room geometry, product layout, and air path together.
Project Details Needed for Quotation
Supplier can’t select the right system from room size alone.
Product and operating data decide the real refrigeration load and equipment configuration.
Before asking for a quotation, prepare these details:
| 목 | What to provide |
|---|---|
| 제품 유형 | Beef, 돼지고기, poultry, 해물, processed meat, or other products |
| 애플리케이션 | 신선한, 냉장, 언, 아니면 폭발적으로 얼어붙는다. |
| Daily loading quantity | How much product enters the room per day |
| Inlet product temperature | 방에 들어가기 전 제품 온도 |
| 목표실내온도 | Required room air temperature |
| Target product temperature | Required final product/core temperature |
| Storage time | How long the product will stay in storage |
| 객실 크기 / 용량 | Room dimensions or required storage capacity |
| 주변 온도 | Local outdoor temperature or project climate |
| Installation location | 실내 또는 실외 설치 |
| 전원공급장치 | 전압, 단계, 및 빈도 |
| 문 열림 빈도 | How often the door opens during operation |
| Blast freezing requirement | Whether fast freezing is required |
결론
The best meat cold room solution depends on product type, loading temperature, storage cycle, 및 작동 조건.
A room for chilled meat may not suit frozen storage or blast freezing, so system selection should start with the real process requirement.
Before you choose equipment, define the product type, daily loading, 목표 온도, and room usage clearly.
These factors decide room design, 냉동 용량, and long-term operating performance.
