We Manufacture All Sizes Cold Room Sandwich Panel

We produce cold room panels with width: 900 /1000 /1100mm; thickness: 50 /75 /100 /120 /150 /200mm. Or your custom size, skontaktuj się z nami swobodnie.

Panel chłodni

We normally use PU (poliuretan) lub PIR (Pianka poliizocyjanuranowa) as the cold room panel core , both side surfaces use stainless steel, aluminum sheet, galvanized steel, itp. Panel density is >42kg/m³. And cold room panel has B1/B2/B3 fireproof Grade. B1 is the top grade, B3 is the worst.We use B1 or B2 Grade, depend on clientsneed.

The division of fireproof grade is generally determined by theoxygen index”. The oxygen index of the core material of B1 grade fireproof panel must be >32 (in the combustion test), B2 grade must be >26, and those <26 are B3 grade plates.

Simple Test Method: Take a small piece of core material and ignite it.

#Grade B3: Easy to ignite and has dripping burning substances.

#Grade B2: Left the fire self-extinguishing.

#Grade B1: Difficult to ignite.

PU panel advantages:

#1. Low thermal conductivity
#2. Beautiful shape and easy installation
#3. Good fire resistance
#4. Non-toxic and tasteless
#5. Wide temperature range
#6. Waterproof and moistureproof

PIR panel advantages:

#1. Lower thermal conductivity

#2. Light weight shockproof

#3. Cryogenic insulation material (Used for a variety of pipes and equipment from -196°C to +120°C)

Porady: PIR panel mostly used in Large or huge industrial plants, cold storages, garages, mobile homes, exhibition halls, gymnasiums,itp.

Aplikacja

Cold room panel mainly used for cold chain logistics, przetwórstwo spożywcze, centra handlowe, supermarkety, hotele i catering lotniczy, biofarmaceutyki, drobne chemikalia, elektronika precyzyjna i inne gałęzie przemysłu. Tymczasem, wykorzystywane do produkcji, magazynowanie i logistyka żywności, lekarstwa i inne towary, które wymagają środowiska o stałej temperaturze.

Sklep z owocami morza

Transport w łańcuchu chłodniczym

Łańcuch chłodniczy

Supermarket 2

Supermarket

Catering lotniczy

catering lotniczy

Biomedycyna

Drobne chemikalia

Drobne chemikalia

Przetwórstwo spożywcze

Przetwórstwo spożywcze

Elektronika precyzyjna

Elektronika precyzyjna

Panel Connection

2 Ways of Connection

There are two ways of panel connection: slip joint and camlock.Two of both can firmly install the Zimny ​​pokój.

Slip Joint Advantages

#1. Improve insulation and air-tightness of the joints.

#2. Excellent thermal insulation, good waterproof.

#3. Piękny wygląd, durable, easy and fast installation.

The slip joint system is a special type designed for assembling large and medium-sized cold room. It is combined with light steel structure or concrete frame to assemble the cold storage. Its appearance, area and volume can be freely designed according to different needs.

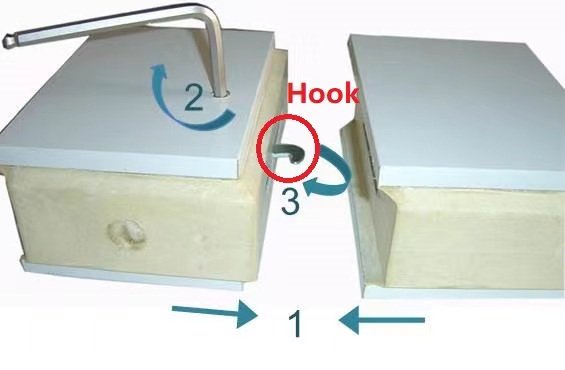

Camlock Advantages

#1. Oszczędzanie energii, dobre parametry termoizolacyjne, strong pressure resistance, piękny wygląd.
#2. Easy to use, long life, high density, wysoka wytrzymałość, anti-aging and corrosion resistance.
#3. Easy to assemble and combine to save space for building large and medium-sized cold storage.
#4. The construction period is short, which is convenient for customers to put into production as soon as possible.

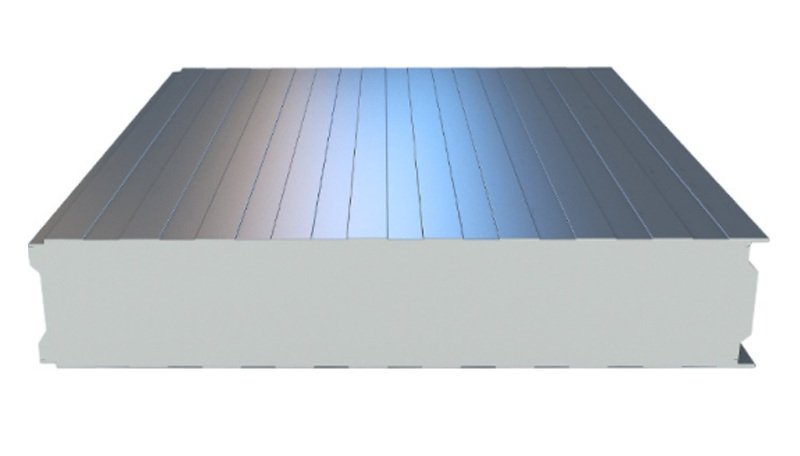

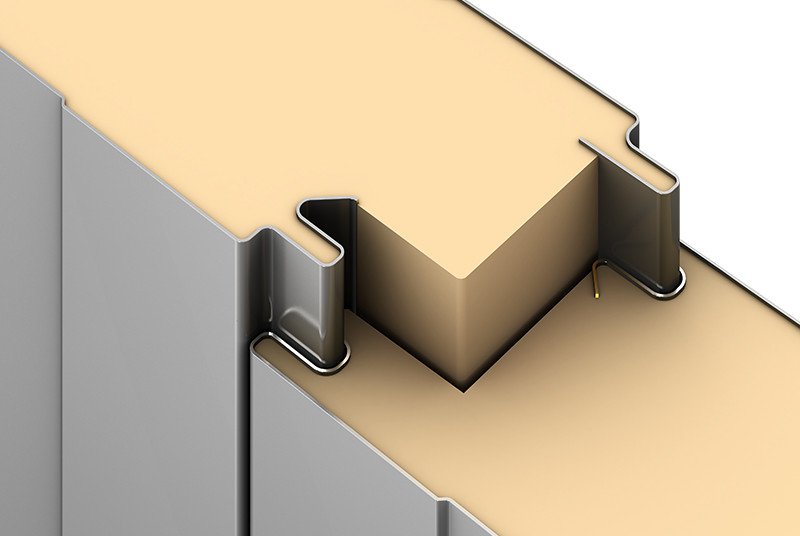

Slip Joint Panel

Cold room panel structure

Panel Structure

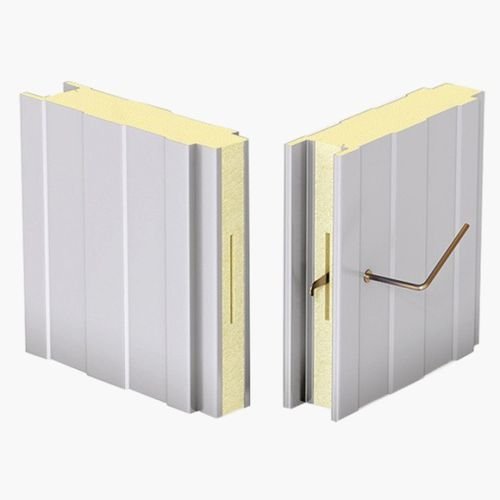

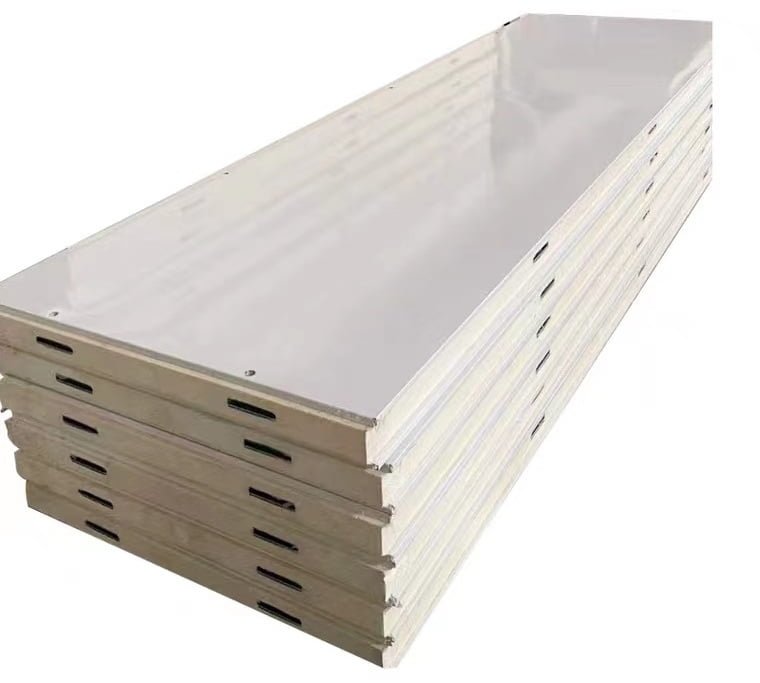

Camlock Panel

Cold Room Construction

Cold Room Construction

Panel Construction Drawing

Cold Room Panel Feature

Room Temperature for Different Application

AplikacjaStopień ognioodporności paneluGrubość paneluTemperatura pokojowa
Owoc / WarzywaB2
75mm0~5°C / 32~41℉
Chemiczny / FarmaceutycznyB275mm0~5°C / 32~41℉
Lody / Sklep z lodemB2100mm-10~-5°C / 14~23℉
Zamrożone mięsoB1150mm
-25~-18°C / -13~0,4℉
Świeże mięso ( Sklep 6 Miesiące)B1180mm-40~-30°C / -40~-22℉

Condition of Different Plate

NO.MaterialMaterial FeatureAplikacjaGrubość
1Stainless SteelUse 304 Stal nierdzewna, has good corrosion and heat resistance, low temp strength and good bending resistance, non-magnetic and other mechanical propertiesHigh-level hotels / Seafood refrigeration0.5~1.5mm
2Embossed Aluminum PlateUse mould to extrude grain from the aluminum plateHotel / Kitchen refrigerator0.6~0.8mm
3Galvanized SteelFormed after heat treatment, strong corrosion resistanceCold room panel0.5~1.5mm
4Anti-skid Aluminum PlateSurface precessing extrusion molding, non-slip streamlined pattern decoration, high hardness, odporność na korozjęPeople move around frequently, and the ground is not laid with cement floor tiles1.5~5.0mm

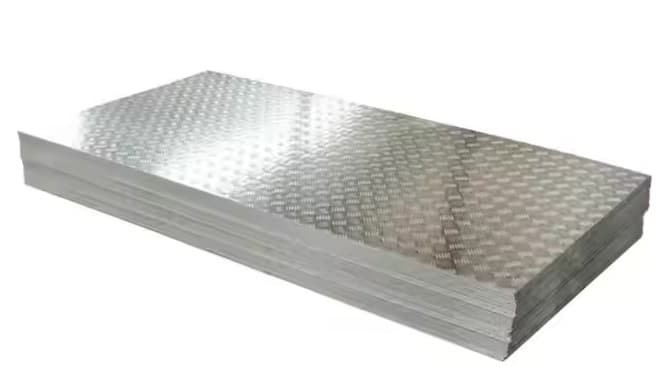

Embossed aluminum plate

Embossed Aluminum plate

Stainless Steel Plate

Stainless Steel Plate

Anti-skid aluminum plate

Anti-skid Aluminum Plate

galvanized-steels-1

Galvanized Steel Plate

Why Choose Our Cold Room Panel?

Our Panel Installation Procedure

1st Step: Wall Panel Installation

#1. Install the wall panel from the corner.

According to the drawing, drill holes in the correct panel position, and the electric drill should be perpendicular to the panel surface when drilling. Erect the wall panels and place soft materials (such as foam) on the ground to prevent any damage to the panels. Then check whether the wall panels are in the correct position (Checks are required from beginning to end). After the position is fixed, welding angle iron onto the plate beam, meanwhile fix the inner and outer corners.

#2. After the two wall panels at the corner are installed, start to install the next wall panel along the corner.

Before installation, apply white sealing paste onto panel corners of the (convex) groove. The sealing paste should be dense and uniform.

#3. Hit with a hammer between the panels to make them closer.

Use connectors to wedge the wall panels each other, and which are respectively fixed in the gap between the wall panels. The lower connector should be as low as possible, so that it can be covered after pouring concrete. The gap between the panels should be 3mm.

2nd Step: Top and Floor Panel Installation

#1. Start from the corner of the cold room to install the top and floor panel.

According to the drawing, fix panels to the correct height and position. The panels should be placed on the wall panel and the T-shaped iron. Then fix the top/floor panel and the T-shaped iron with rivets, connect the corner panel between the top/floor panel and the wall panel, then install the next panel.​​

#2. Fix the panel connectors outside the cold room.

Each panel seam should be fixed with 3 connectors: each one at both ends of the panel and the rest one in the middle of the panel (the length of the top panel is less than 4 metry, can only use 2 panel connectors).​​

#3. Ceiling C-shaped steel installation.

Place the C-shaped steel in the correct position due to the drawing, then open the top panel at the position of the bolt hole, and use the bolt to connect the angle iron with the panel firmly. Finally welding the ceiling C-shaped steel to the purlins.

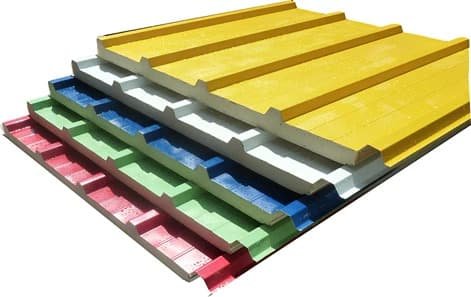

Cold Room Panel-Color steel

3rd Step: Corner Panel Installation

#1. Apply sealant to all the contact between corner panel and other panels.

The corners between the wall panels should be fixed in sections to facilitate the pouring of polyurethane foam. The corner panel for fixing the top panel should have a gap every 500mm (the size of the gap is subject to the foam material), and then fix it on the top panel and wall panel.

#2. The corner plate is fixed with rivets.

The rivet space is 100mm, and the rivets fixed on the corner should be in a straight line with equal space.
