We Manufacture And Tailor All Types Top-Level Ice Block Machine

Our machine can produce ice block 3~50Kg per piece, 0.5~50 ton per day, freezing time 4~8 hrs. Ice block can lower to -5°C, food grade, transparent or semi-transparent color. Has excellent refrigeration effect and rapid cooling capacity. Also can customize your demand, hubungi kami Sekarang!

Bekerjasama dengan Syarikat Cemerlang Menjadikan Anda Lebih Baik

Perkongsian Kami

Motor kipas Panasonic
Pemampat Maneurop
danfoss
Scotsman Ice Systems
Copeland
sangat
SANYO
logo bitzer

What is Ice Block Machine?

Ice block machine, also called block ice machine, can produce solidblock-shapedice. Widely used in ice factories at ports and docks, pemprosesan makanan, aquatic product preservation, long-distance cold chain transportation, special fields’ penyejukan, ice sculpture , edible ice, dan lain-lain. Its size can be customized according to clientsdemand.

Classification:

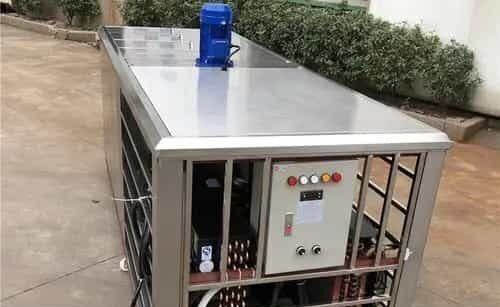

1) Self-Contained Ice Block Machine

1.Compact units that integrate the ice-making and storage components into a single machine.

2.Easy to install and often preferred for smaller spaces or businesses with lower ice production requirements.

3.Generally more straightforward in design and operation.

2) Direct Cooling Ice Block Machine

1.Operate by directly transferring the refrigerant through the ice-making plates or molds.

2.Faster ice production due to efficient heat transfer.

3.Commonly used for larger-scale operations.

4. Can be made into container, 20ft or 40ft.

mesin blok ais-02

3) Brine Cooling Ice Block Machine

1.Utilize a brine solution (usually a mixture of water and salt) to cool the ice-making plates or molds.

2.Offer a balance between energy efficiency and ice production speed.

3.Commonly used in medium-sized ice plants.

4. Can be made into container, 20ft or 40ft.

Ice Block Machine Application

Pemprosesan makanan

Pemprosesan makanan

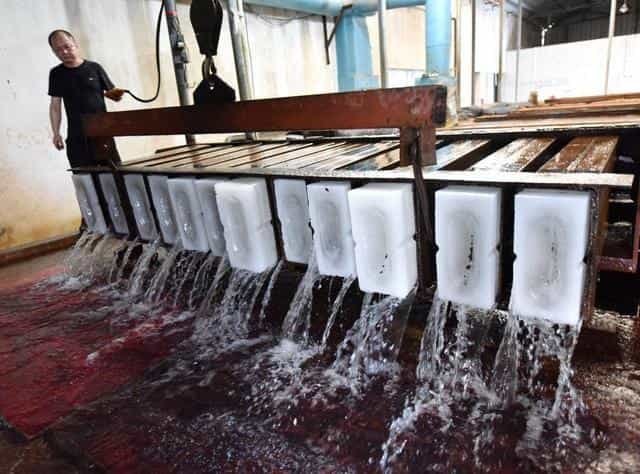

Ice factory

Ice Factory

Fishery

Fishery

Simpanan sejuk udang

Seafood Preservation

Beverage storage

Beverage Storage

Concrete Mixing

Construction

Ice Sculpture

Ice Sculpture

Pengangkutan Rantaian Sejuk

Cold Chain Transport

How to Produce Ice Block?

Ice block machine 002

Langkah 1: Ensure that the ice block machine is clean and in good working condition. Check all components, including the freezing chamber, water supply, and refrigeration system.

Langkah 2: Put the fixed mold frame into ice machine. Ensure the frame is stable, smooth and no shake.

Ice block mold frame
Freezing liquid

Langkah 3: Pour into appropriate amount of freezing liquid,which is good anti-freeze, anti-corrosion and anti-rust function.

Langkah 4: Fill the ice block mold with water and place it in the mold holder then fix it. It’s important to use quality water to ensure the purity of the ice.

Ice block machine fill into water
Control box-power on

Langkah 5: Switch on the power, and after about 4-6 Jam, the freezing will be completed. Ice temperature can lower to -5°C.

Langkah 6: After the icing is completed, prepare to unmold (soak the mold in cold water for 1 minute and then pick it up and unmold)

Ice block machine unmold
Ice block 001

Langkah 7: The snow-white and clean ice block are completed, which can be used for industrial and edible function.

Ice Block Machine Parameter

ModelSWIB-0.3TSWIB-0.5TSWIB-1.0TSWIB-2.0TSWIB-3.0T
Production Capacity0.3 Ton/24hr0.5 Ton/24hr1.0 Ton/24hr2.0 Ton/24hr3.0 Ton/24hr
Cooling MethodUdara disejukkanUdara disejukkanUdara disejukkanUdara disejukkanUdara disejukkan
voltan380V380V380V380V380V
Kekerapan50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Dimensions1620*510*1250mm1700*620*1250mm2260*840*1250mm3080*990*1350mm3080*990*1350mm
Machine Weight220kg280kg378kg590kg733kg
Ice Block Dimension120*100*460mm120*100*460mm120*100*460mm155*100*700mm185*100*780mm
Ice Block Weight5kg5kg5kg10kg15kg
Ice bucket dimension135*110*470mm135*110*470mm135*110*470mm165*110*715mm200*115*792mm
Freezing Time4jam4jam4jam8jam8jam
Batch time per day55533
Installation Power1.8kw2.45kw6.0kw10kw13.5kw
Consumption Power1.71kw2.01kw4.8kw8.23kw11.5kw
Jenis PemampatPistonPistonPistonPistonPiston
Compressor brandHanbell/ BitzerHanbell/ BitzerHanbell/ BitzerHanbell/ BitzerHanbell/ Bitzer
Bahan penyejukR404AR404AR404AR404AR404A
Thermal expansion valveDanfossDanfossDanfossDanfossDanfoss

Why Choose Our Ice Block Machine?

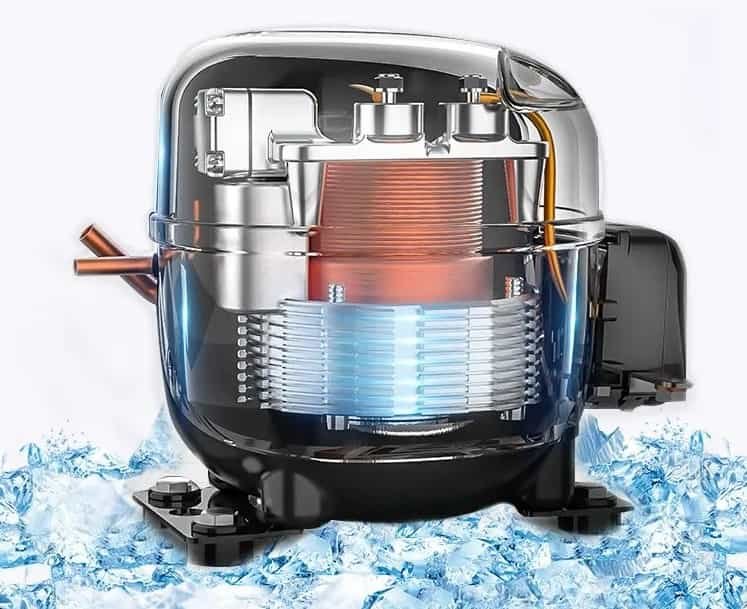

#1. High power compressor
High efficiency and strong power. Good toughness and corrosion resistance, whole refrigeration system used copper tube which is high heat exchange efficiency.

High efficiency compressor

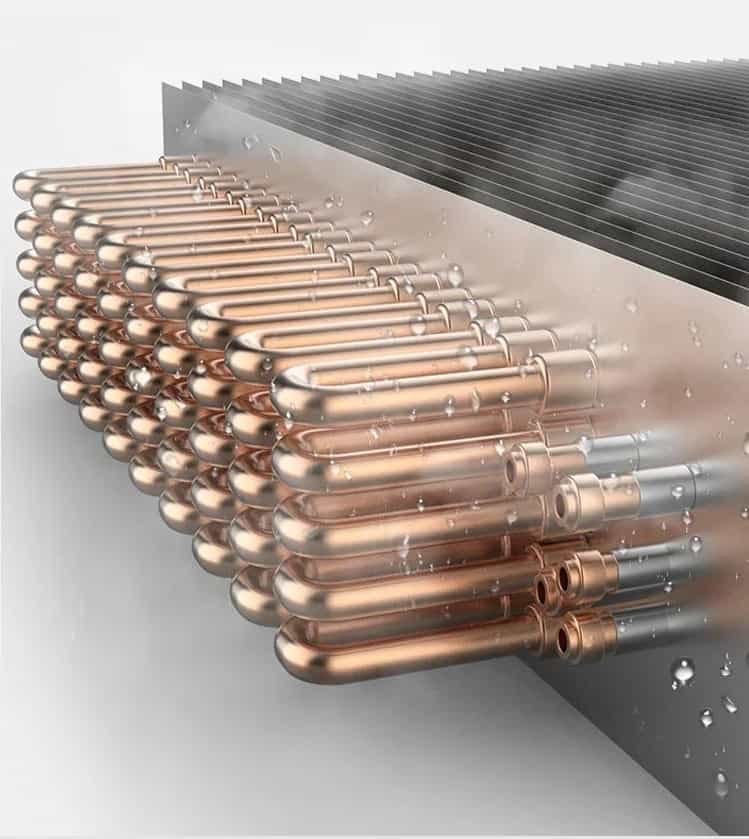

Pure copper tube

#2. Durable condenser cooling

Pure copper condenser and evaporator tube, best cooling performance, hydrophilic aluminium fins, strengthen the cooling stable.

#3. High Production Capacity

Our ice block machine boasts an impressive production capacity, ensuring a consistent and reliable supply of ice to meet the demands of your business.

Ice block machine 004
Intelligent Control

#4. User-Friendly Operation

Featuring an intuitive control system, our ice block machine is easy to operate. Users can quickly understand and manage the machine’s functions, reducing the learning curve and improving efficiency.

#5. Versatility in Ice Block Sizes

Our machine offers flexibility in producing various ice block sizes, catering to diverse business needs and applications across different industries.

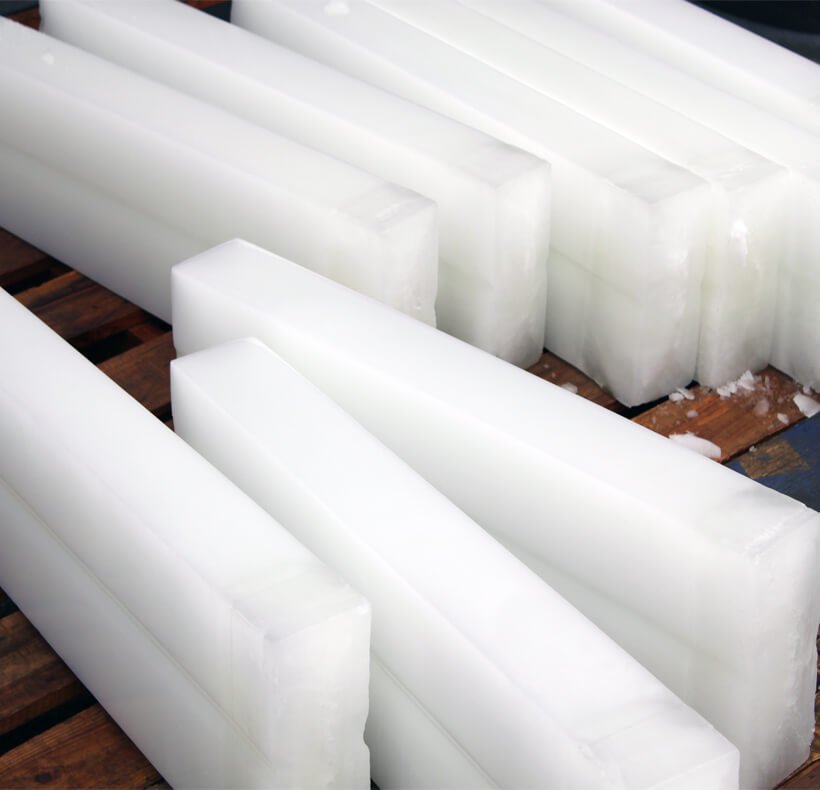

Ice block size

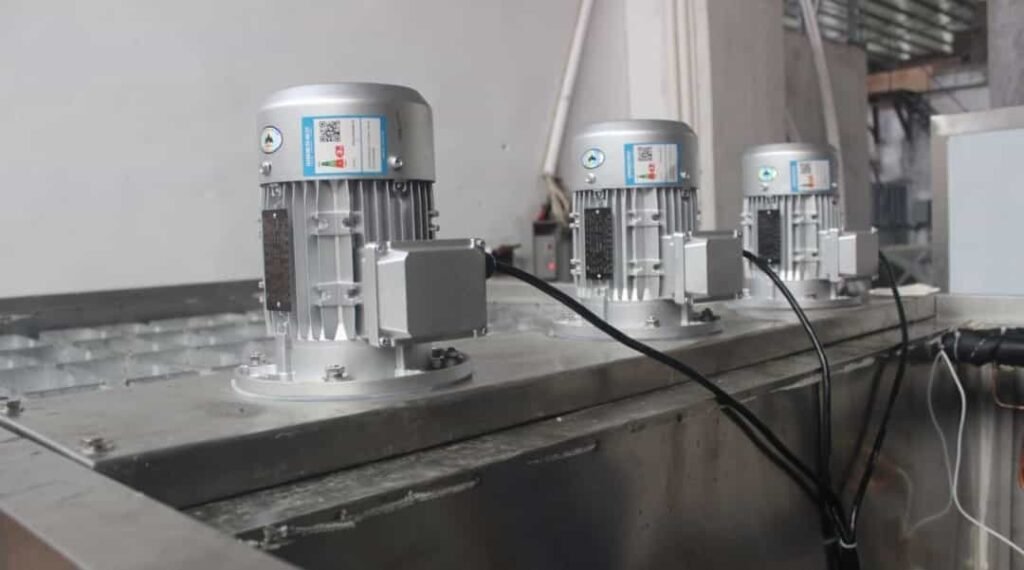

High tech refrigeration system

#6. Advanced Refrigeration Technology

Utilizing state-of-the-art refrigeration technology, our machine ensures efficient and rapid freezing of water, resulting in high-quality ice blocks with consistent size and clarity.

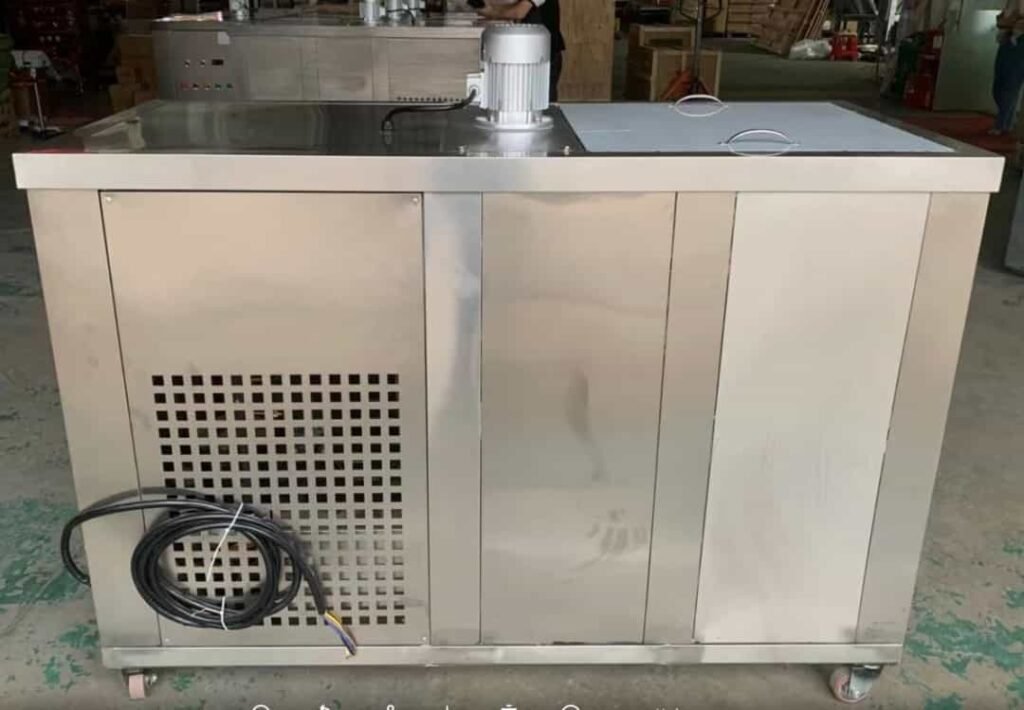

#7. Compact Design for Space Efficiency

Our ice block machine is designed with space efficiency in mind, making it suitable for businesses with limited space while maintaining optimal ice production capabilities.

Ice block machine-compact design
Hubungi kami untuk penyaman udara

#8. Excellent Customer Support

When you choose our ice block machine, you gain access to excellent customer support. Our dedicated team is ready to assist with any inquiries, technical issues, or guidance you may need.

Kelebihan Tambahan

Visi Anda, Kepakaran Kami

Rakan Kongsi Kami Menjadikan Semuanya Berbeza

Jangan berpuas hati dengan hasil yang biasa-biasa saja. Pilih kami sebagai rakan kongsi anda dan alami perbezaan yang datang dengan kualiti luar biasa dan perkhidmatan peribadi kami

Kualiti untuk dipadankan dengan jenama terkemuka

Dengan bekerja dengan kami, anda akan menikmati kualiti tinggi yang sama seperti jenama terkenal, dan mengurangkan risiko kecacatan atau penarikan balik produk, sekali gus meningkatkan reputasi jenama anda yang baik

Masa ke pasaran yang lebih pantas

Jangan biarkan penghantaran lewat mengganggu operasi perniagaan anda, alami ketenangan fikiran yang datang dengan mengetahui pesanan anda akan sentiasa dihantar tepat pada masanya

Harga yang kompetitif

Kami boleh menawarkan harga terus kilang yang kompetitif tanpa menjejaskan kualiti, yang akan mengurangkan kos penyumberan anda, meningkatkan keuntungan dan meningkatkan margin

Innovative R&D design

Anda boleh mendapat manfaat daripada bahan baharu dan inovasi proses teknikal kami untuk mencipta produk unik dan berbeza yang membantu anda menonjol daripada persaingan

Meningkatkan kecekapan operasi

Kami boleh membantu untuk mengoptimumkan rantaian bekalan anda, mengurangkan kos masa anda sekitar pengeluaran/penghantaran, supaya anda boleh memfokuskan sumber anda pada pemasaran dan perkhidmatan pelanggan

Mengutamakan Pelanggan, Sentiasa

Dari saat anda membuat pesanan kepada sokongan selepas jualan. Kami akan membantu anda dengan sebarang pertanyaan, memastikan pengalaman yang lancar dan tanpa kerumitan

Soalan Lazim

Frequently Asked Questions About Ice Block Machine

Common types include cube ice machines, flake ice machines, nugget ice machines, mesin ais komersial, mesin ais tiub, mesin blok ais, dry ice machine, and specialty ice machines for various shapes and sizes.

Speedway komited terhadap kualiti merentas semua aspek perniagaan kami – kakitangan kami, proses dan produk. Kami memanggil ini 'standard SPEEDWAY'.

Ice machines typically work by pumping water to an ice tray, where it freezes. The ice is then released and collected in a storage bin. The process involves a refrigeration cycle and, in the case of flake ice machines, a mechanism to scrape or break the ice into flakes.

Kami mengalu-alukan sebarang pesanan sampel sebelum pembelian kuantiti besar, itu bermakna 1pc boleh diterima. Untuk kuantiti pesanan besar-besaran ialah 10pcs setiap model.

Regular cleaning is crucial. For most machines, a thorough cleaning every six months is recommended. Namun begitu, the frequency can vary based on usage and water quality. Follow the manufacturer’s guidelines.

We have own factory to produce the main types ice machines, tetapi kami juga melakukan perdagangan untuk produk berkaitan lain kerana kami mempunyai sumber untuk membekalkan kualiti dan perkhidmatan yang baik.

Cloudy ice can be due to impurities in the water, inadequate filtration, or improper cleaning of components. Ensure that you’re using filtered water and regularly clean the machine as per the manufacturer’s instructions.

ya,kita ada 5 jurutera kanan, 13 profesional r & pasukan D, 65 kakitangan pengeluaran profesional.

It’s not recommended. Tap water may contain impurities that affect the taste and clarity of the ice. Using filtered or purified water is advisable.

Kami menyokong pembayaran melalui pindahan kawat, seperti T/T, L/C, Western Union. Juga terima pembayaran Paypal untuk pesanan sekeping sampel.

Yang pasti. Anda boleh menghantar logo anda kepada kami, pakej, reka bentuk, spesifikasi teknikal, kami akan memberi anda penyelesaian akhir yang berpuas hati dengan sewajarnya tanpa kos tambahan !

Ensure proper ventilation, regular cleaning, dan penyelenggaraan. Consider machines with energy-saving features, and adhere to recommended operating temperatures.

ya, Kami telah lakukan. Kilang kami ada inner 100% pemeriksaan untuk setiap unit sebelum dimuatkan, juga boleh membuat laporan ujian undang-undang untuk setiap shippment. Apa lagi, boleh jemput SGS / TUV / Pemeriksaan BV mengikut pelanggan’ permintaan, tetapi pelanggan perlu membayar yuran ujian.

Pertama, kita perlu memulakan perniagaan untuk memahami antara satu sama lain, jika keadaan berjalan lancar dan anda bertemu kami “permintaan pengedar”, maka kami akan menandatangani kontrak dan perjanjian rasmi untuk memastikan hak anda dalam pasaran anda.

Sila hubungi jurujual kami untuk butiran lanjut.

Regularly clean and sanitize the machine, especially the ice bin. Use approved cleaning solutions and follow the manufacturer’s recommendations.

The lifespan of the ice machine can vary depending on factors such as maintenance, penggunaan, dan keadaan persekitaran. Secara purata, a well-maintained ice machine can last 12~15 years or more.

ya, but it should be done carefully. Follow the manufacturer’s guidelines for transportation, and ensure the machine is properly leveled and connected after moving.

Ensure optimal water flow, maintain proper temperature settings, and regularly clean the machine. If needed, consult with the manufacturer or a technician for adjustments.

It depends on the machine. Some are designed for outdoor use, while others are meant for controlled indoor environments. Check the specifications in the user manual.

Regular cleaning of the ice bin, checking and replacing water filters, and ensuring proper ventilation are tasks that users can perform. Namun begitu, for more complex issues, professional assistance is recommended.
