We fabricate 0.5~5.0HP monoblock refrigeration unit (both inverter and non-inverter) with better price. Meanwhile provide design, ಅನುಸ್ಥಾಪನ, ಸಿದ್ಧಪಡಿಸುವ, ನಿರ್ವಹಣೆ, technical support and one-stop solution for your project, ಈಗ ನಮ್ಮನ್ನು ಸಂಪರ್ಕಿಸಿ !
We fabricate 0.5~3.5HP monoblock refrigeration unit (both inverter and non-inverter) with better price. Meanwhile provide design, ಅನುಸ್ಥಾಪನ, ಸಿದ್ಧಪಡಿಸುವ, ನಿರ್ವಹಣೆ, technical support and one-stop solution for your project, ಈಗ ನಮ್ಮನ್ನು ಸಂಪರ್ಕಿಸಿ !
Monoblock refrigeration unit (one kind of self-contained refrigeration unit) is an integrated refrigeration system that offers a compact and integral solution for cooling and freezing applications. It combines multiple components, ಸಂಕೋಚಕ ಸೇರಿದಂತೆ, ಕಂಡೆನ್ಸರ್, ಬಾಷ್ಪೀಕರಣ, and controls, into a single unit. These components work together to circulate refrigerant and release heat from the refrigerated space, thereby maintaining the set temperature.
Monoblock refrigeration unit has two installation types: wall mounted and top mounted. Wall mounted unit used for no top space area, top mounted unit is opposite.
Monoblock refrigeration unit commonly used in various applications, such as commercial refrigeration, food storage, ಶೀತ ಸರಪಳಿ ಸಾರಿಗೆ, ತಂಪಾದ ಕೊಠಡಿಗಳು, walk-in coolers, freezer rooms, and specialized applications. In future, monoblock refrigeration units are expected to continue evolving with advanced technologies, providing even greater efficiency and sustainability.
“ಸ್ಪೀಡ್ವೇ” fabricate high-level monoblock refrigeration unit 0.5-3.5hp with good features: Easy installation, compact design, energy efficiency, and low maintenance requirements.
Our monoblock refrigeration unit can cool the room faster, make the system stable, and energy saving (20~45%) !
Monoblock refrigeration unit can store seafood, ಹೂವು, ಹಣ್ಣು, ಐಸ್ ಕ್ರೀಮ್, ಮಾಂಸ, medicine, vaccine, wine, also can be used in supermarket, cold chain, walk-in cooler and freezer. ಅಷ್ಟರಲ್ಲಿ, ಉತ್ಪಾದನೆಗೆ ಬಳಸಲಾಗುತ್ತದೆ, storage and logistics of agricultural products, precise components and other commodities which needed a constant temperature environment.
ಸಮುದ್ರಾಹಾರ
ಹೂವು
ಸೂಪರ್ಮಾರ್ಕೆಟ್
ಐಸ್ ಕ್ರೀಮ್
ಹಣ್ಣು
ಕೋಲ್ಡ್ ಚೈನ್
ಲಸಿಕೆ
ವೈನ್
ಯಾವುದೇ ಚಿಂತೆಯಿಲ್ಲದೆ, ನಮ್ಮ ಕೂಲಿಂಗ್ ಸಾಮರ್ಥ್ಯದ ಟನ್ ಕ್ಯಾಲ್ಕುಲೇಟರ್ ನಿಮಗೆ ಸಹಾಯ ಮಾಡುತ್ತದೆ !
#1.Design and Engineering
The production process begins with the design and engineering phase. Engineers and designers develop detailed plans and specifications for the monoblock refrigeration unit, taking into account factors such as cooling capacity, dimensions, energy efficiency, and component compatibility. And often use advanced computer-aided design (CAD) software to create accurate 3D models and technical drawings.
#2.Component Procurement
Once the design is finalized, should start procuring the necessary components for the monoblock refrigeration unit. This includes the compressor, ಕಂಡೆನ್ಸರ್, ಬಾಷ್ಪೀಕರಣ, ವಿಸ್ತರಣೆ ಕವಾಟ, ಎಂಜಿನ್ ಫ್ಯಾನ್, control panel, and various other electrical and mechanical components. It is crucial to source high-quality components from trusted suppliers to ensure the reliability and performance of the final product.
#3.Assembly of Components
The assembly process begins by mounting the compressor onto a sturdy base within the unit’s casing. The condenser, ಬಾಷ್ಪೀಕರಣ, ವಿಸ್ತರಣೆ ಕವಾಟ, and copper coil are then positioned and connected according to the design specifications. You should carefully pay attention to ensuring proper alignment, secure connections, and appropriate insulation to maximize cooling efficiency and prevent refrigerant leaks.
#4.Electrical Wiring
Next step should carry out the electrical wiring of the monoblock refrigeration unit. This involves connecting the control panel, ಎಂಜಿನ್ ಫ್ಯಾನ್, ಸಂಕೋಚಕ, and other electrical components using specialized wiring techniques. Operator must strictly follow safety measures, including proper grounding and insulation, to ensure reliable and safe operation.
#5.Refrigerant Charging
Once the components and electrical wiring are in place, should start to charging the refrigerant into the system. This requires precise measurement and careful handling of the refrigerant to achieve the correct charge according to the manufacturer’s specifications. The refrigerant used is typically chosen based on its performance characteristics and environmental impact considerations.
#6.Quality Control and Testing
Before the monoblock refrigeration unit is ready for shipment, must perform thoroughly quality control checks and testing. Each unit undergoes rigorous inspections to ensure proper functionality, efficient cooling performance, and adherence to safety standards. Performance tests are conducted to verify temperature control accuracy, cooling capacity, and power consumption.
#7.Packaging and Shipment
After passing quality control checks, the monoblock refrigeration units are carefully packaged to prevent damage during transportation. Must employ protective measures, such as cushioning materials and secure packaging to safeguard the units. They are then ready for shipment to the customers, ensuring they arrive in optimal condition.

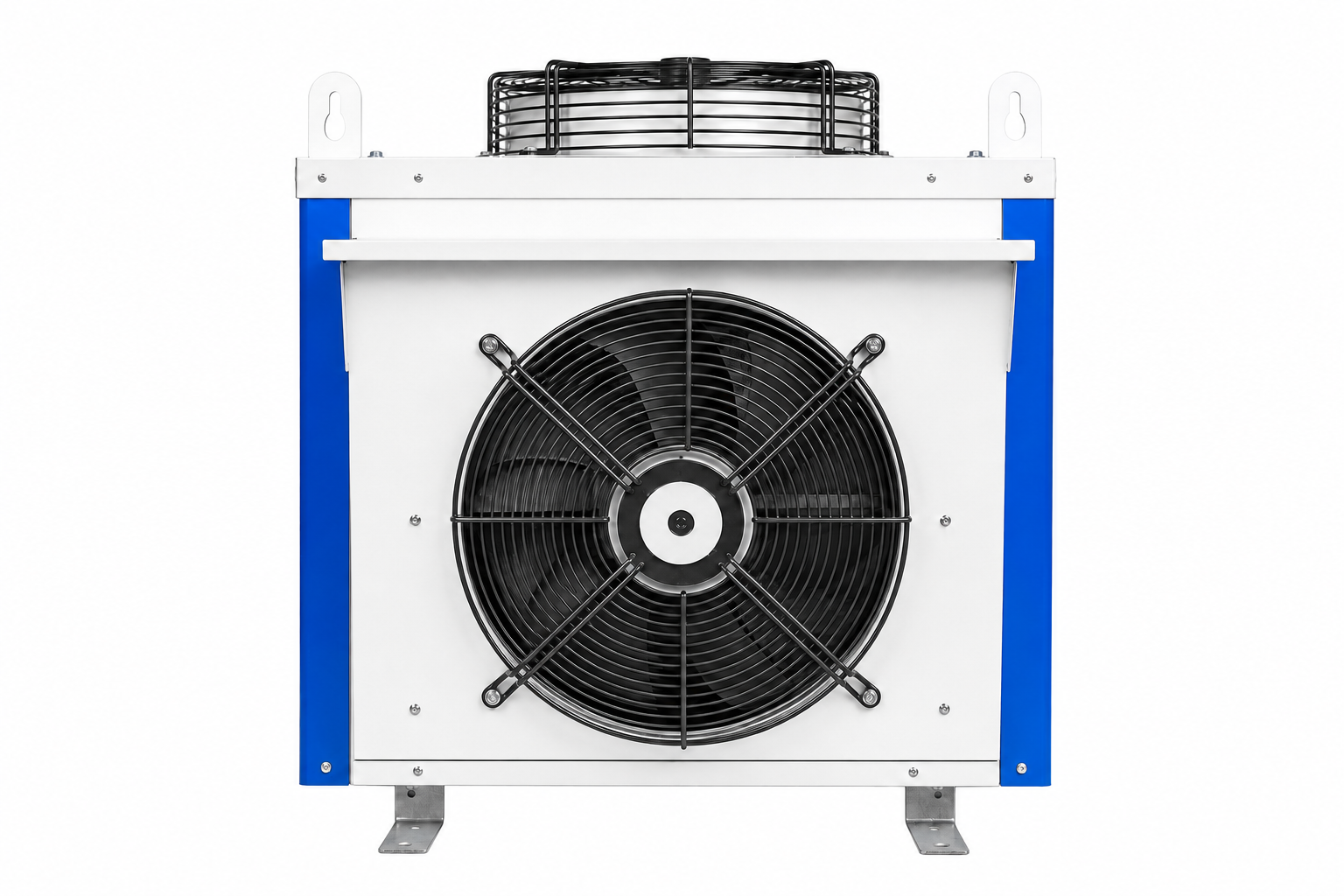

Front View
1) Refrigeration unit must be installed vertically to the ground, at least 500mm to the top obstable.There must be no shelter at the air intlet, and smooth ventilation.
Side View
2) Evaporator of refrigeration unit must be embeded into the wall without space, evaporator should be parallel to the ground without inclination. Condenser should be installed at least 800mm to the side obstacle.
| ಮಾದರಿ | ಎ | ಬಿ | ಸಿ | ಡಿ | E | ಎ | ಬಿ | ಸಿ | ಡಿ | ಇ | f | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1HP | 590 | 705 | 450 | 358 | 628 | 435 | 380 | 470 | 390 | 60 | 48 | 210 |
| 2HP | 700 | 820 | 481 | 408 | 680 | 600 | 420 | 590 | 450 | 60 | 72 | 260 |
| 3HP | 920 | 820 | 481 | 408 | 720 | 756 | 420 | 600 | 650 | 60 | 52 | 300 |
Monoblock Refrigeration Unit Part Dimension
ಅನುಸ್ಥಾಪನಾ ರೇಖಾಚಿತ್ರ

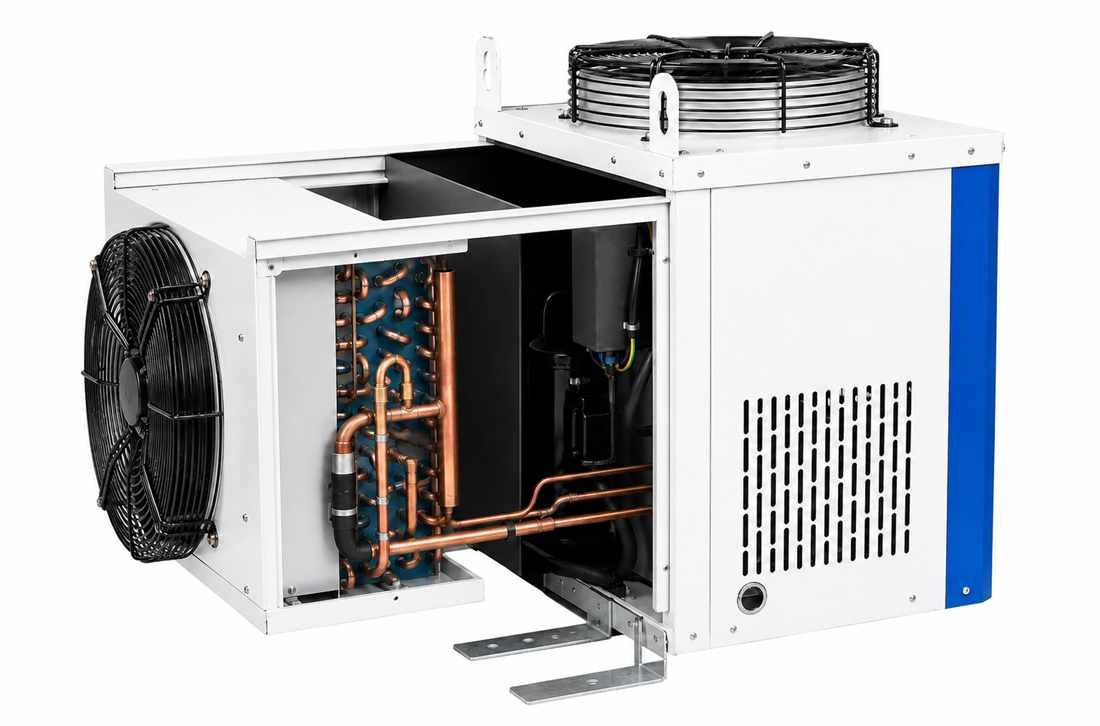

Monoblock Refrigeration Unit Components
Installation Project-Outside
Installation Project-Inside
Installation Project-New Model
| ಮಾದರಿ | SWMB-05F | SWMB-10F | SWMB-15F | SWMB-20F | SWMB-30F | SWMB-50F |
|---|---|---|---|---|---|---|
| ಸಾಮರ್ಥ್ಯ | 0.5HP | 1.0HP | 1.5HP | 2.0HP | 3.0HP | 5.0HP |
| ಕೂಲಿಂಗ್ ಸಾಮರ್ಥ್ಯ | 810ಡಬ್ಲ್ಯೂ | 1560ಡಬ್ಲ್ಯೂ | 2560ಡಬ್ಲ್ಯೂ | 3500ಡಬ್ಲ್ಯೂ | 5720ಡಬ್ಲ್ಯೂ | 9100ಡಬ್ಲ್ಯೂ |
| ಇನ್ಪುಟ್ ಪವರ್ | 756ಡಬ್ಲ್ಯೂ | 1300ಡಬ್ಲ್ಯೂ | 1925ಡಬ್ಲ್ಯೂ | 1630ಡಬ್ಲ್ಯೂ | 2700ಡಬ್ಲ್ಯೂ | 3750ಡಬ್ಲ್ಯೂ |
| Max Current | 6.8ಎ | 8ಎ | 9ಎ | 10ಎ | 15ಎ | 18ಎ |
| ವೋಲ್ಟೇಜ್ | 220V/1Ph | 220V/1Ph | 220V/1Ph | 220V/1Ph | 220V/1Ph | 380V/3Ph |
| ಸಂಕೋಚಕ | Sanyo/Highly | Sanyo/Highly | Sanyo/Highly | Sanyo/Highly | Sanyo/Highly | Sanyo/Highly |
| ಸಂಕೋಚಕ ಪ್ರಕಾರ | ರೋಟರಿ | ರೋಟರಿ | ರೋಟರಿ | ರೋಟರಿ | ರೋಟರಿ | ರೋಟರಿ |
| ತಾಪಮಾನವನ್ನು ಹೊಂದಿಸಿ | -24 ~ 8°C | -24 ~ 8°C | -24 ~ 8°C | -24 ~ 8°C | -24 ~ 8°C | -24 ~ 8°C |
| ಶೀತಕ | R404 | R404 | R404 | R404 | R404 | R404 |
| Refrigerant Weight | 1.5ಕೇಜಿ | 2.0ಕೇಜಿ | 2.2ಕೇಜಿ | 2.4ಕೇಜಿ | 3.5ಕೇಜಿ | 3.7ಕೇಜಿ |
| ಉದ್ದ(ಮಿಮೀ) | 1020 | 1020 | 1020 | 1170 | 1170 | 1350 |
| ಅಗಲ(ಮಿಮೀ) | 600 | 600 | 600 | 660 | 660 | 800 |
| ಎತ್ತರ(ಮಿಮೀ) | 770 | 770 | 770 | 830 | 830 | 950 |
| ನಿವ್ವಳ ತೂಕ | 56ಕೇಜಿ | 75ಕೇಜಿ | 83ಕೇಜಿ | 98ಕೇಜಿ | 108ಕೇಜಿ | 160ಕೇಜಿ |
| ಆವರ್ತನ | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| ಆವಿಯಾಗುತ್ತಿರುವ ತಾಪಮಾನ | -35°C | -35°C | -35°C | -35°C | -35°C | -35°C |
| ಕಂಡೆನ್ಸಿಂಗ್ ತಾಪಮಾನ | 54°C | 54°C | 54°C | 54°C | 54°C | 54°C |
| ಕೂಲಿಂಗ್ ಮಾರ್ಗ | ಗಾಳಿ ತಂಪಾಗಿದೆ | ಗಾಳಿ ತಂಪಾಗಿದೆ | ಗಾಳಿ ತಂಪಾಗಿದೆ | ಗಾಳಿ ತಂಪಾಗಿದೆ | ಗಾಳಿ ತಂಪಾಗಿದೆ | ಗಾಳಿ ತಂಪಾಗಿದೆ |
| Throttle Way | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve |
| Electric Defrost | ಹೌದು | ಹೌದು | ಹೌದು | ಹೌದು | ಹೌದು | ಹೌದು |
| ಕೋಲ್ಡ್ ರೂಮ್ ಪರಿಮಾಣ | 5~8 CBM | 11~15 CBM | 14~25 CBM | 33~43 CBM | 40~53 CBM | 55~76 CBM |
#1.World-Famous Compressor
Our monoblock refrigeration unit use Copeland/Bitzer/Danfoss/Sanyo compressor, known for its exceptional efficiency and durability, which deliver optimal cooling performance, ensuring precise temperature control and rapid cooling or freezing as per your requirements.
#2.Heavy Casing
The unit is built with a robust and heavy casing, designed to withstand demanding environments and provide long-lasting protection. The sturdy casing enhances the unit’s durability, ensuring it can withstand the rigors of commercial use without compromising its performance.
#3.High-Quality Fan Motor
Our monoblock refrigeration unit features the high-quality fan motor, carefully selected for its reliable and efficient operation. The fan motor facilitates proper airflow within the unit, ensuring efficient heat transfer and consistent cooling throughout the refrigerated space. This contributes to maintaining optimal temperature levels and preserving the quality of stored products.
#4. Firm Copper Coil
The copper coil has excellent heat transfer properties and resistance to corrosion. The copper coil maximizes heat exchange efficiency, enabling quick and efficient cooling. It also enhances the longevity of the unit by minimizing the risk of refrigerant leaks and ensuring consistent performance over time.
#5. ಮಾರಾಟದ ನಂತರದ ಸೇವೆ
1) ತಾಂತ್ರಿಕ ಸಹಾಯ
Our technical support team is available to assist customers with any inquiries or concerns they may have. Whether it’s troubleshooting issues, providing guidance on maintenance procedures, or offering expert advice, our team is dedicated to ensuring that our customers receive prompt and effective assistance.
2) Responsive Communication
We value open and transparent communication with our customers, max 18hrs will respond to inquiries, requests for information, or any other communication from our clients.
3) Replacement Parts Availability
We maintain a stock replacement parts for our monoblock refrigeration units. By providing easy access to high-quality parts, we aim to minimize downtime and enable our customers to quickly restore the functionality of their units.
Frequently Asked Questions About Monoblock Refrigeration Unit
Unlike traditional refrigeration systems that have separate components, such as a remote compressor and condenser unit, monoblock refrigeration units combine all the necessary components into a single enclosure. This integrated design simplifies installation, reduces space requirements, and offers improved energy efficiency.
ಸ್ಪೀಡ್ವೇ ನಮ್ಮ ವ್ಯವಹಾರದ ಎಲ್ಲಾ ಅಂಶಗಳಲ್ಲಿ ಗುಣಮಟ್ಟಕ್ಕೆ ಬದ್ಧವಾಗಿದೆ - ನಮ್ಮ ಜನರು, ಪ್ರಕ್ರಿಯೆಗಳು ಮತ್ತು ಉತ್ಪನ್ನಗಳು. ನಾವು ಇದನ್ನು 'ಸ್ಪೀಡ್ವೇ ಮಾನದಂಡ' ಎಂದು ಕರೆಯುತ್ತೇವೆ.
ಹೌದು, monoblock refrigeration units are designed to be energy-efficient. They incorporate advanced technologies, such as high-efficiency compressors, optimized heat exchangers, and smart controls, to minimize energy consumption and reduce operational costs, normally can save 20-25% ಶಕ್ತಿ.
ದೊಡ್ಡ ಪ್ರಮಾಣದ ಖರೀದಿಯ ಮೊದಲು ಯಾವುದೇ ಮಾದರಿ ಆದೇಶವನ್ನು ನಾವು ಸ್ವಾಗತಿಸುತ್ತೇವೆ, ಅಂದರೆ 1pc ಸ್ವೀಕಾರಾರ್ಹವಾಗಿದೆ. ಸಾಮೂಹಿಕ ಆದೇಶದ ಪ್ರಮಾಣವು ಪ್ರತಿ ಮಾದರಿಗೆ 10pcs ಆಗಿದೆ.
ಹೌದು, we offer customization options for monoblock refrigeration units. These can include modifications in dimensions, temperature ranges, shelving configurations, and additional features to meet specific customer needs and space constraints.
Regular maintenance tasks for monoblock refrigeration units include cleaning the condenser coils, checking and replacing filters, ವಿದ್ಯುತ್ ಸಂಪರ್ಕಗಳನ್ನು ಪರಿಶೀಲಿಸಲಾಗುತ್ತಿದೆ, and ensuring proper airflow. We recommend to follow the manufacturer’s maintenance guidelines to keep the unit operating efficiently.
ವಿವರಗಳ ವಿನಂತಿಗಾಗಿ ದಯವಿಟ್ಟು ನಮಗೆ ಇಮೇಲ್ ಮಾಡಿ: sales@cn-beyond.com
ಮುಖ್ಯ ಶೈತ್ಯೀಕರಣ ಉತ್ಪನ್ನಗಳನ್ನು ಉತ್ಪಾದಿಸಲು ನಾವು ಸ್ವಂತ ಕಾರ್ಖಾನೆಯನ್ನು ಹೊಂದಿದ್ದೇವೆ, ಆದರೆ ನಾವು ಇತರ ಸಂಬಂಧಿತ ಉತ್ಪನ್ನಗಳಿಗೆ ವ್ಯಾಪಾರ ಮಾಡುತ್ತೇವೆ ಏಕೆಂದರೆ ನಾವು ಉತ್ತಮ ಗುಣಮಟ್ಟ ಮತ್ತು ಸೇವೆಯನ್ನು ಪೂರೈಸಲು ಸಂಪನ್ಮೂಲವನ್ನು ಹೊಂದಿದ್ದೇವೆ.
ಹೌದು,ನಾವು ಹೊಂದಿದ್ದೇವೆ 5 ಹಿರಿಯ ಇಂಜಿನಿಯರುಗಳು, 13 ವೃತ್ತಿಪರ ಆರ್ & ಡಿ ತಂಡ, 65 ವೃತ್ತಿಪರ ಉತ್ಪಾದನಾ ಸಿಬ್ಬಂದಿ.
The lifespan of a monoblock refrigeration unit can vary depending on factors such as usage, ನಿರ್ವಹಣೆ, and quality of components. ಸರಾಸರಿ, with proper care and maintenance, a well-built monoblock refrigeration unit can last 8~10 years or even longer.
Monoblock refrigeration units are designed to operate quietly. ಆದಾಗ್ಯೂ, noise levels can vary depending on the specific unit and its installation. Proper installation, ನಿರ್ವಹಣೆ, and insulation can help minimize any noise produced during operation.
Monoblock refrigeration units often include safety features such as built-in pressure controls, temperature limit switches, and overload protection for the compressor. These features help prevent system malfunctions, maintain safe operating conditions, and protect the unit from potential damage.
ಹೌದು, monoblock refrigeration units can relocate if needed. Their compact and self-contained design allows for relatively easy relocation, making them a flexible solution for businesses that may need to re-arrange their refrigeration setups or move to a different location.
The choice of refrigerant may vary depending on the manufacturer and regional regulations. Common refrigerants used in monoblock refrigeration units included R-134a, R-404A, or R-290,etc. These refrigerants have good thermodynamic properties and low ozone depletion potential.
ಕೆಲವು ಸಂದರ್ಭಗಳಲ್ಲಿ, monoblock refrigeration units can be integrated with existing systems, depending on compatibility and the specific requirements of the installation. ಆದಾಗ್ಯೂ, it is important to consult with a professional technician or manufacturer to assess feasibility and ensure proper integration.
ಹೌದು, monoblock refrigeration units can be operated with renewable energy sources such as solar power or wind power. By connecting the unit to an appropriate renewable energy system or utilizing an inverter, company or government can reduce their carbon emission and achieve greater energy efficiency.
ಹೌದು, monoblock refrigeration units are designed to handle both cooling and freezing applications. They can be set to maintain a wide range of temperatures suitable for various products, making them versatile for different business needs.
