Guía completa sobre la ventana de equilibrio de la cámara fría

Tabla de contenido

Maintain the cold storage (Cuarto frio) is not only keeping the temperature low, but also ensuring the entire system functions smoothly and efficiently. One often-overlooked component is the cold room balance window. This small crucial component plays an irreplaceable role for your cold room.

What is Cold Room Balance Window?

Cold room pressure relief port, commonly called as balance window, is a special ventilation system installed in cold storage rooms, congeladores, or refrigerated warehouses. Its primary function is to balance the air pressure between the inside and outside of the cold room, particularly during door openings or rapid temperature changes. This helps to prevent pressure imbalances that can lead to structural damage, door malfunctions, or difficulty in opening doors.

Objetivo

Pressure Balance: During rapid cooling or door openings, the pressure between inside and outside of the Cuarto frio will be different. The balance window allows air to flow between the two areas, equalizing the pressure.

Preventing Structural Damage: Without the pressure relief port, pressure imbalances can cause walls, ceilings, or doors to deform or become difficult to open, potentially compromising the integrity of the cold storage facility.

Eficiencia energética: By maintaining balance air pressure, the system helps reduce unnecessary strain on Equipo de refrigeración, which can lead to more efficient energy use.

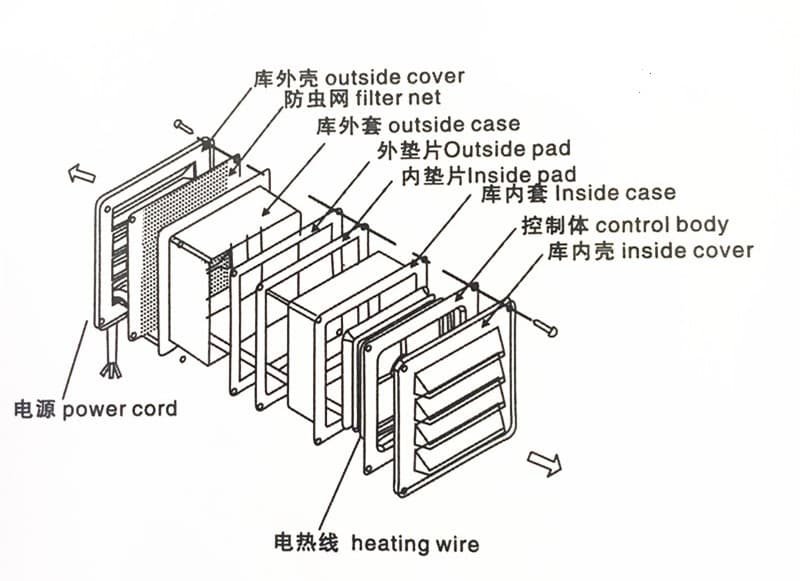

Pressure relief port structure



ModeloNombreMaterialFuente de alimentaciónPeso
SW-WB1100Circular Pressure Relief PortAluminum Alloy / Acero inoxidable36V/48V/220V0.56kg
SW-WB1200Square Pressure Relief PortAluminum Alloy / Acero inoxidable36V/48V/220V0.83kg

Pressure Relief Port Parameter

How to Install Cold Room Balance Window?

Location Selection

Strategic Placement: Install the balance window in a location where air pressure differentials are most likely to occur, such as near doors or other high-traffic areas.

Height Consideration: Should place the window at an appropriate height to facilitate efficient air exchange without affecting the cooling performance of the facility.

Wall Integration

Cut an Opening: Based on the size of the balance window, create an opening in the cold room wall. The opening should be little larger than the port to allow for proper sealing and insulation.

Proper Sealing: Once the port is inserted into the wall, seal the edges using sealants or insulation materials to prevent air leaks and maintain control de temperatura.

Insulated Design

Thermal Barrier: Ensure the balance window has built-in insulation to prevent heat transfer between the interior and exterior environments. This insulation is crucial to maintaining the efficiency of the cold room unit.

Check for Durability

Materials: Choose balance windows made from durable, corrosion-resistant materials, as they will be exposed to extreme temperatures and humidity.

Quality Components: Ensure the relief component, such as flaps or louvers, functions smoothly under different conditions and can withstand repeated use.

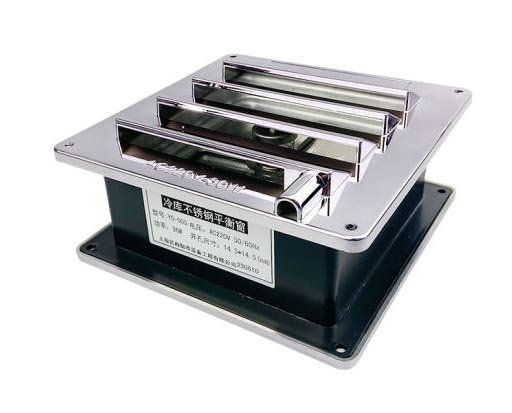

Square pressure relief port

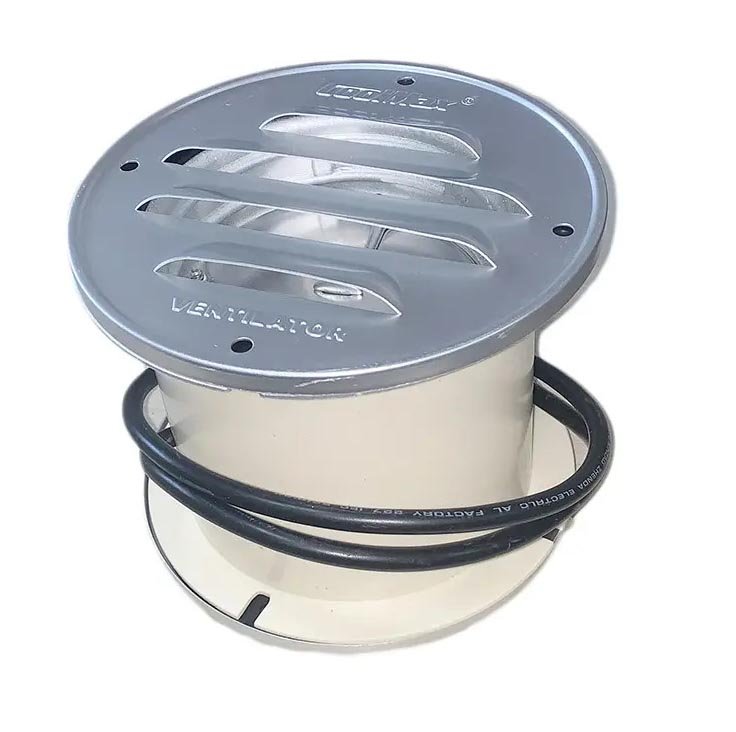

Circle pressure relief port

Pruebas

Pressure Testing: After installation, test the system to ensure it effectively balances the pressure without compromising the insulation of the cold storage room. You may need to monitor the pressure levels over a few cycles of door openings and temperature changes.

Cold Room Balance Window Usage Tips

Regular Inspection

Monitor Functionality: Regularly check the balance window for proper operation. Ensure the relief component (such as flaps or vents) is functioning correctly and no damage or blockage that could impede airflow.

Inspect Seals: Inspect the seals around the balance window to ensure that they remain intact and that no air is leaking in or out of the cold storage room.

Adjust for Seasonal Changes

Adaptation: Depend on the season and changes in external temperatures, the balance window may need adjustments to ensure it continues to function optimally. Por ejemplo, durante los meses más cálidos, it may need to accommodate more significant pressure differences.

Fuente de alimentación

Pressure relief port uses 36V,48V or 220V to run, same like the cold room light. Don’t use 380V to run the window balance, with damage it.

Mantenimiento

Clean Regularly: Keep the balance window clean and free of debris or ice buildup, which can interfere with its operation.

Replace Worn Parts: Con el tiempo, components such as seals, flaps, or other mechanical parts may wear out. Ensure timely replacement to maintain the balance window’s efficiency.

Square pressure relief port 1

Square pressure relief port

Monitor for Ice Buildup

Prevent Ice Blockage: En ambientes de almacenamiento en frío, ice will build up around the balance window, especially in high-humidity conditions. Regularly check for ice accumulation and clear any blockages to ensure that the window operates smoothly.

Emergency Preparation

Have a Backup Plan: In case of a malfunction, it’s essential to have a backup plan to manage air pressure, involves: temporarily adjust other ventilation systems or limit door openings until the balance window is repaired.

personal del tren

Operational Awareness: Ensure your staff understands the importance of the balance window (pressure relief port) and knows how to identify potential issues. Must train staff to report any signs of malfunction, such as difficulty in opening doors or unusual sounds near the balance window.

Conclusión

Cuarto frio pressure relief port, or balance window, is essential component in maintaining the structural integrity and efficiency of cold rooms. By managing pressure differences between the inside and outside cold room, these windows help prevent damage to the cold room structure, ensure smooth door operation, and reduce energy consumption.
