We supply box type condensing units for cold room wholesalers, Installateure, Auftragnehmer, und Endverbraucher.
Our range covers L / U / H / V Types for different installation spaces, cooling loads, and project needs.

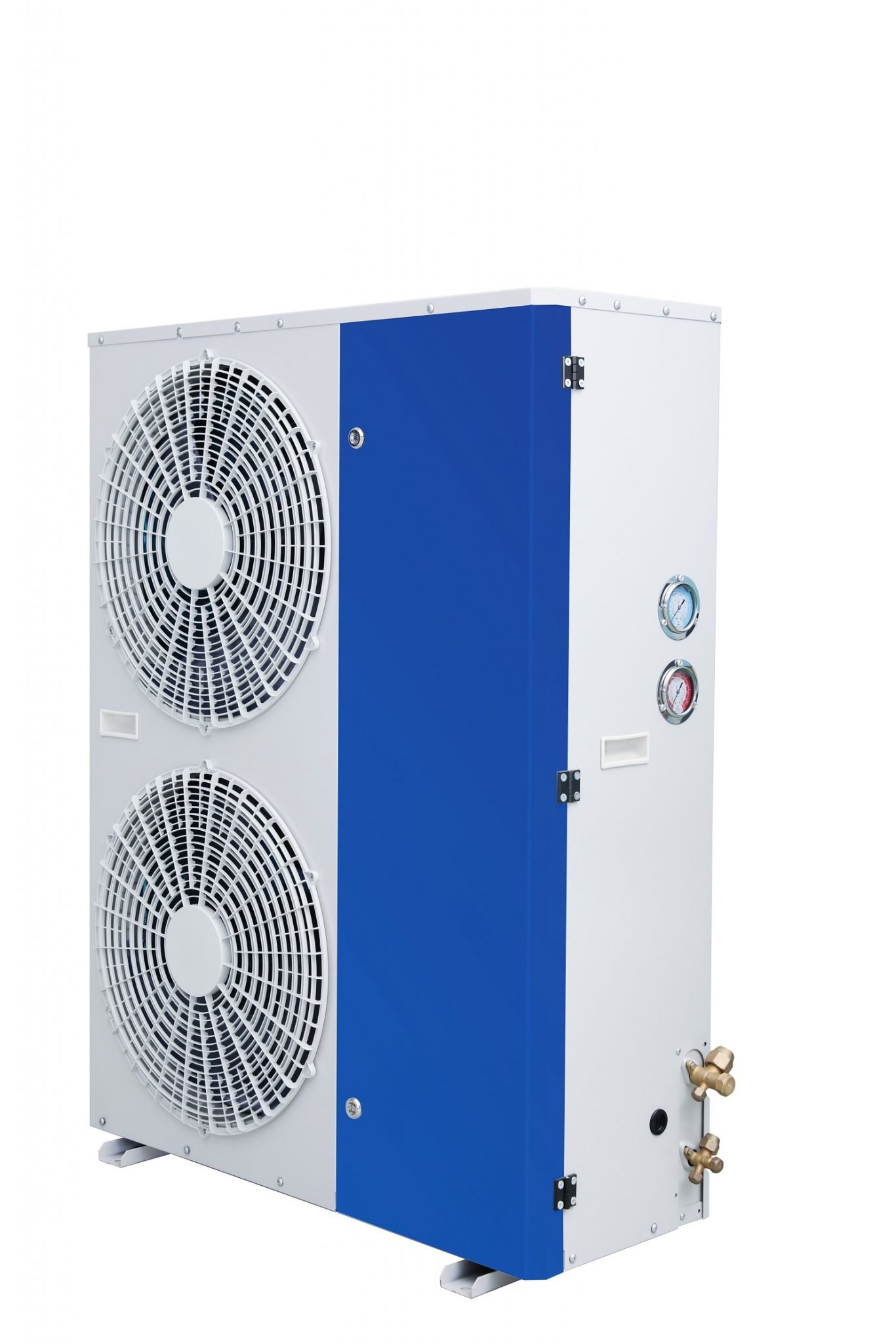

Box type condensing unit is a compact refrigeration unit that combines the compressor, Kondensator, Lüftermotoren, receiver, and basic protection components inside one cabinet. This design keeps the unit clean, kompakt, and easier to handle for cold room projects.
Compare with open type condensing units (semi-hermetic type), a box type design gives better component protection and a cleaner layout for transport, Installation, and site management.
Compare with monoblock units, it gives buyers more flexibility in evaporator matching and project configuration.
This type of unit fits many cold room applications, especially when buyers need standard products, easier handling, and stable batch supply for export and project use.
It works well for distributors, Installateure, Auftragnehmer, and end users who want practical selection and easier field coordination.
Good fit for
Kleine und mittlere Kühlräume
Distributed refrigeration projects
Export distribution orders
Standard project supply
Projects that need easy installation and clean equipment layout
Not the best fit for
Very large centralized cold room projects
Projects with very long piping runs
Sites with poor ventilation and very high ambient heat
Applications with strict noise limits and difficult airflow conditions
The table below shows common configuration ranges for selection.
Final data depends on room temperature, Umgebungstemperatur, Kältemittel, compressor brand, and target market requirements.
Raumgröße
Target room temperature
Umgebungstemperatur
Installation country
Stromversorgung
Refrigerant preference
Piping route and service space
Need for evaporator or full system package
Not sure which type fits your project?
Send us your cold room size, Zimmertemperatur, Umgebungstemperatur, Land, and power supply.
We will recommend the right box type condensing unit for your job.
Different cabinet structures do more than change the shape of the unit.
They affect airflow direction, service access, heat rejection, east layout, and site matching.
Buyers should choose the structure first, then confirm compressor, Kältemittel, and working condition.
L Type units use a side-oriented layout that fits projects with limited installation space but still keeps practical service access. This structure works well for standard cold room and helps buyers handle batch purchasing and model selection more easily.
Am besten für
Standard chiller and freezer room projects
Regular installation locations
Standard production and shipment
Wholesale and distribution supply
Typical buyers
Cold room equipment wholesalers
Installation companies
Small and medium project buyers
Modellpalette: L Series / standard box condensing unit models
Kompressorserie: Copeland ZB / ZF / ZSI, Bitzer ECOLINE, or equivalent
Kompressortyp: Scrollen / Kolben
PS-Bereich: 2PS bis 15 PS
Cooling Capacity Range: Based on working condition and refrigerant
Verdampfungstemperatur: 5°C bis -35°C
Anwendungstemperatur: Mittlere Temperatur / Niedrige Temperatur
Umgebungstemperatur: Up to +45°C, Option für hohe Umgebungstemperatur verfügbar
Stromspannung: 220v / 380v / 415v / 460v
Stromversorgung: 1Ph / 3Ph, 50Hertz / 60Hertz
Kältemittel: R404A / R507 / R448A / R449A / R290
Installationstyp: Bodenmontiert / draussen
Einheitentyp: Air cooled box type condensing unit
Kondensatortyp: Luftgekühlter Lamellenkondensator
Lüftertyp: Axial fan
Steuerungsoption: Basic control / control box optional
Maße: Abhängig von der Kompressorleistung und der Kondensatorgröße
Matching Use: Cold room evaporator matching available
U Type units focus more on cabinet space use and airflow layout. They fit projects that need a compact structure and balanced installation and maintenance access. This type often works well in commercial refrigeration and cold room projects with tighter space.
Am besten für
Compact installation areas
Commercial refrigeration projects
Standard and customized supply
Projects with tighter equipment layout
Typical buyers
Overseas wholesalers
Commercial refrigeration buyers
Customers with compact installation conditions
Modellpalette: U Series / compact box condensing unit models
Kompressorserie: Copeland ZB / ZF / ZS, Bitzer JE / HE, Danfoss LMZ / LLZ, or equivalent
Kompressortyp: Scrollen / Kolben
PS-Bereich: 2HP to 20HP
Cooling Capacity Range: Depends on refrigerant and operating condition
Verdampfungstemperatur: 5°C bis -35°C
Anwendungstemperatur: Mittlere Temperatur / Niedrige Temperatur
Umgebungstemperatur: Up to +45°C, tropical design optional
Stromspannung: 220v / 380v / 415v / 460v
Stromversorgung: 1Ph / 3Ph, 50Hertz / 60Hertz
Kältemittel: R404A / R507 / R448A / R449A
Installationstyp: Bodenmontiert / outdoor or equipment area installation
Einheitentyp: Compact air cooled box condensing unit
Kondensatortyp: Air cooled condenser with compact cabinet layout
Lüftertyp: Axial fan
Steuerungsoption: Standard electrical parts / upgraded control box optional
Maße: Abhängig von der Kompressorleistung und der Kondensatorgröße
Matching Use: Suitable for standard cold room evaporator matching

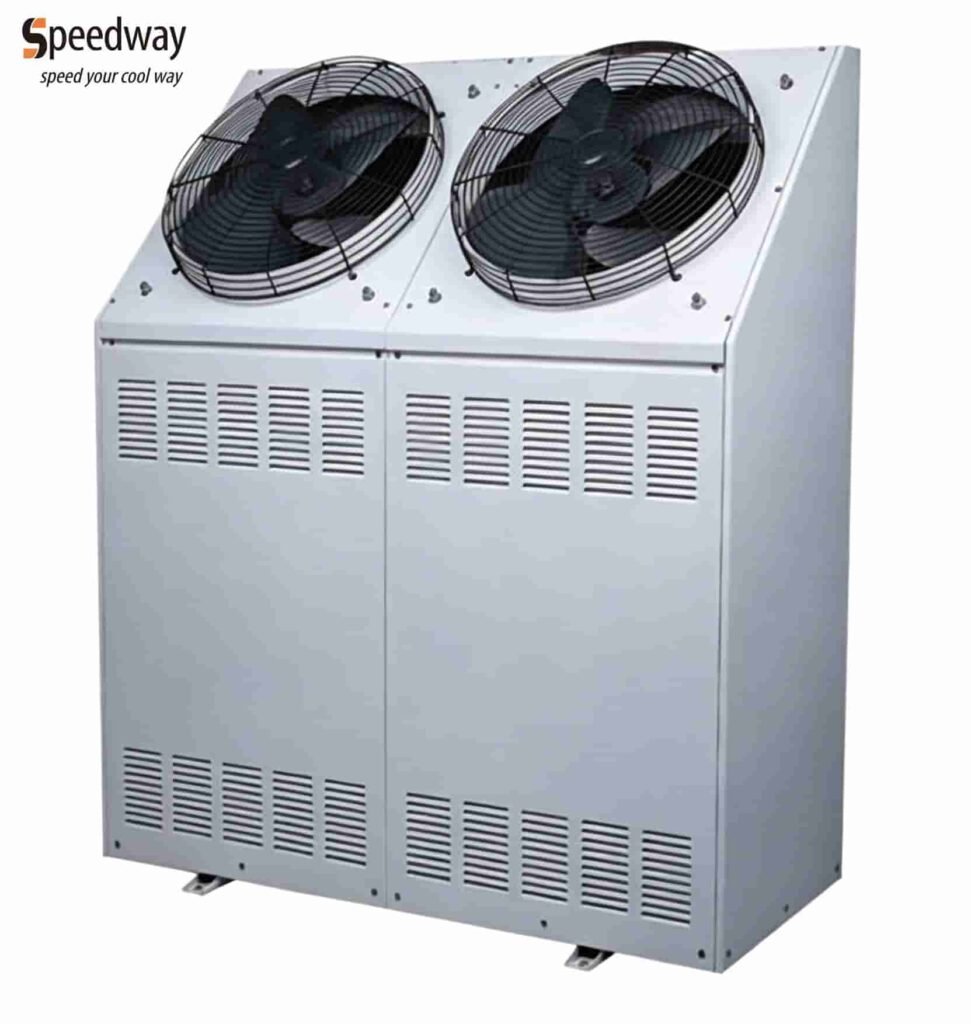

H Type units fit projects that need clearer heat exchange arrangement and better service path design. This structure gives buyers a stronger option for engineering projects, longer running systems, and applications that need better maintenance planning.
Am besten für
Projects with higher cooling and service demands
Long running cold room systems
Engineering and customized supply
Sites that need stronger structural stability
Typical buyers
Ingenieurbüros
Project-based installation companies
End users who focus on stable operation
Modellpalette: H Series / engineering box condensing unit models
Kompressorserie: Copeland ZF / ZFI / ZSI, Bitzer JE / GE, Danfoss LMZ, or equivalent
Kompressortyp: Scrollen / Kolben
PS-Bereich: 3HP to 30HP
Cooling Capacity Range: Depends on compressor brand and condition point
Verdampfungstemperatur: 0°C to -40°C
Anwendungstemperatur: Mittlere Temperatur / Niedrige Temperatur
Umgebungstemperatur: Up to +45°C, high ambient version optional
Stromspannung: 380v / 415v / 460v
Stromversorgung: 3Ph, 50Hertz / 60Hertz
Kältemittel: R404A / R507 / R448A / R449A / R290
Installationstyp: Bodenmontiert / draussen / plant equipment zone
Einheitentyp: Air cooled box condensing unit for engineering use
Kondensatortyp: Large air cooled condenser section
Lüftertyp: Axial fan
Steuerungsoption: Expanded control and protection options available
Maße: Depend on compressor HP, coil size, and cabinet design
Matching Use: Suitable for larger cold room evaporators and project systems
V Type units suit projects that need higher heat rejection efficiency and better airflow organization. This type gives strong value in hot climate markets, higher load projects, and systems that run for long hours and need stable condensing performance.
Am besten für
Projects with higher heat rejection demand
High ambient temperature countries
Heavier cooling loads
Mid-range and high-range engineering solutions
Typical buyers
Buyers in the Middle East, Afrika, South America and Southeast Asia (tropical area)
Ingenieurbüros
Customers who focus on stable performance and stronger cooling output
Modellpalette: V Series / high-efficiency box condensing unit models
Kompressorserie: Copeland ZB / ZF, Bitzer ES / JE, or equivalent
Kompressortyp: Scrollen / Kolben
PS-Bereich: 3HP to 40HP
Cooling Capacity Range: Depends on ambient temperature and refrigerant
Verdampfungstemperatur: 5°C to -40°C
Anwendungstemperatur: Mittlere Temperatur / Niedrige Temperatur
Umgebungstemperatur: Up to +45°C, tropical design available
Stromspannung: 380v / 415v / 460v
Stromversorgung: 3Ph, 50Hertz / 60Hertz
Kältemittel: R404A / R507 / R448A / R449A
Installationstyp: Bodenmontiert / Außenaufstellung
Einheitentyp: V type air cooled box condensing unit
Kondensatortyp: V coil air cooled condenser
Lüftertyp: Axial fan
Steuerungsoption: High ambient and project control options available
Maße: Depend on coil design, Lüftermenge, and compressor model
Matching Use: Suitable for hot climate cold rooms and higher duty systems
Many buyers choose by horsepower first. That often creates selection mistakes.
A better method starts with working condition, installation space, Umgebungstemperatur, and service access.
Choose by installation space:
If the machine area stays tight, choose a structure that uses cabinet space well and still leaves room for airflow and service access.
Choose by ambient temperature:
If the project runs in hot climates, check condenser capacity, airflow design, and high ambient configuration before you confirm the unit.
Choose by maintenance access:
If the site needs regular service and long operating hours, choose a structure that gives easier access to key components.
Choose by room temperature and cooling load:
Medium temperature and low temperature cold rooms need different compressor and refrigerant matching.
Don’t rely only on nominal HP.
Choose by project target:
Some buyers focus on first cost. Others focus on stability, easier maintenance, or repeat order consistency.
Your structure and configuration should match that target.
Quick inquiry prompt
If you send your project data, we can recommend the right type faster and reduce model mismatch.
Buyers usually contact us for one of these reasons:
They need model matching for a new project
They need a high ambient or custom power supply version
They need OEM support
They need condensing units with matching evaporators or refrigeration components
They need practical communication, not only a basic price list
We aim to support project fit, not only product supply.
You only need to send us your cold room size, Zimmertemperatur, Umgebungstemperatur, and installation space. We will recommend the right type based on your project instead of asking you to guess by appearance.
Start with room size, Soll-Raumtemperatur, Umgebungstemperatur, installation space, and power supply. Don’t choose by horsepower only, because final selection should match real working conditions and cooling load.
Not always. Medium temperature and low temperature rooms often need different compressor matching, refrigerant selection, and condition-based capacity checks, so buyers should confirm the exact room temperature before model selection.
Ja. We support different voltage, phase, and frequency options for different markets. Send us your local power standard, and we will check the right configuration for you.
Ja. Many buyers ask for a matched evaporator and related refrigeration components to simplify procurement and reduce selection errors. This approach helps installers and contractors save communication time and improve system matching.
Ja. We can support OEM nameplate, label, and packaging based on your order request. If you have brand requirements, send them with your inquiry.
Ja. We can offer high ambient versions for hot regions (Umgebungstemperatur ＞+43°C). Please tell us the highest outdoor temperature, so we can match the right condenser and configuration.
Depend on the model. But common components include compressor, air cooled condenser, Lüftermotoren, receiver, Filter, Schauglas, and basic protection parts. We will confirm the full configuration before order.
Many box type condensing units support 220V, 380v, 415v, or 460V, with 50Hz or 60Hz options in 1 phase or 3 phase formats depending on model range. Buyers should confirm voltage, phase, and frequency before quotation because power mismatch can block installation and startup.
Check room temperature, Umgebungstemperatur, Stromversorgung, Kältemittel, installation space, ventilation condition, and whether the project needs standard configuration or custom options. Buyers should also confirm what the standard unit includes, what optional parts are available, and whether the supplier supports technical documents, OEM, and after-sales communication.
