What is Copper Pipe Insulation
Copper pipe insulation refers to the process of wrapping thermal insulation materials around copper pipes to minimize heat loss or gain. This is critical for maintaining room temperature, enhancing energy efficiency, and protecting pipes from environmental damage. It is particularly relevant for both residential and commercial plumbing systems, especially in heating, penyejukan, and water distribution applications.
Why It Matters
Insulating copper pipes can lower heating costs by reducing heat loss, protect against pipe damage from freezing, and extend pipe lifespan by preventing corrosion. Sebagai contoh, studies show insulating hot water pipes can save up to 5% on water heating bills by allowing lower thermostat settings (Do-It-Yourself Savings Project: Insulate Hot Water Pipes). Namun begitu, in well-insulated spaces or short pipe runs, the benefits might be minimal, and improper installation could trap moisture, risking corrosion.

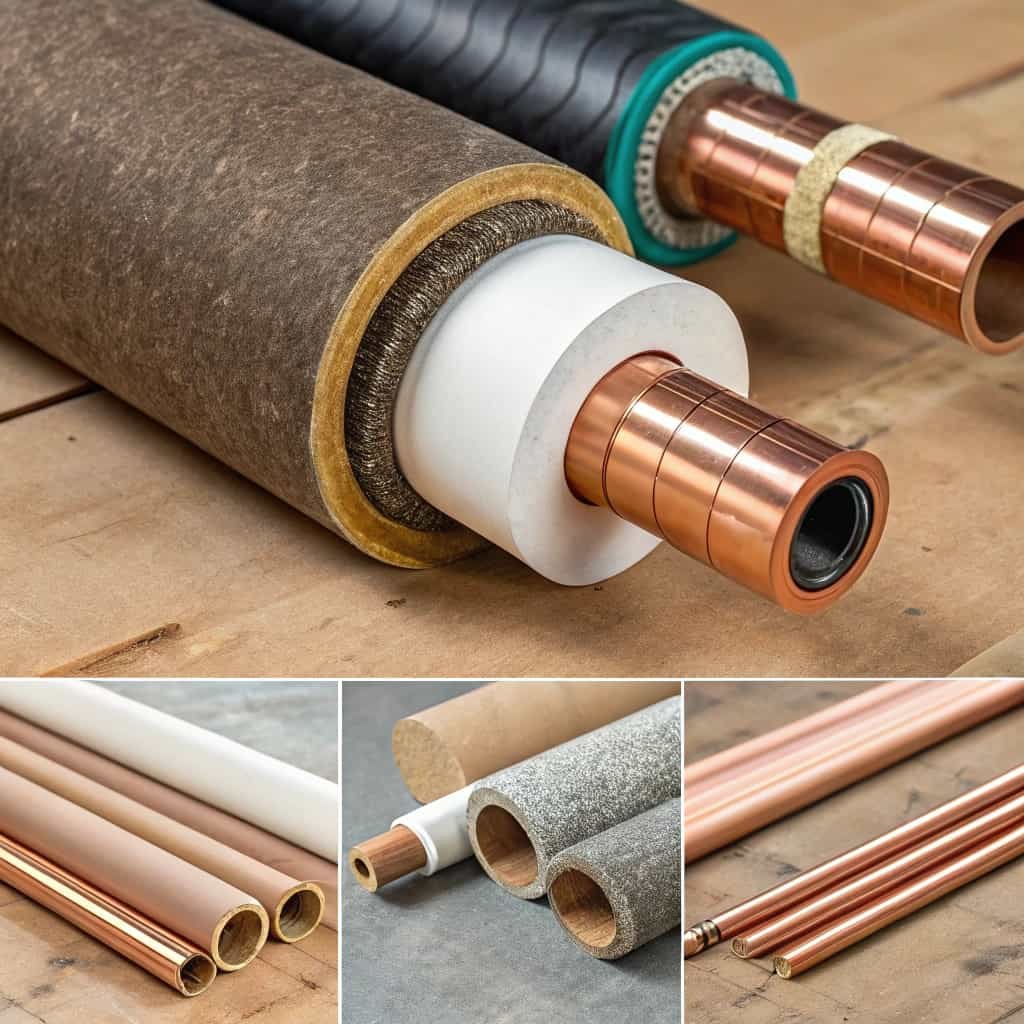

Types of Insulation Materials
Several materials are suitable for insulating copper pipes, each with distinct properties:
- Fiberglass: Made from woven glass strands, it offers excellent thermal resistance and is fire-resistant, making it ideal for hot water systems. It’s available in tubes and wraps, though handling can cause irritation due to glass fibers. Cost ranges from $0.30 kepada $1.50 per linear foot (The Pros and Cons of the Top 5 Best Home Pipe Insulation Options).
- Foam (Polyethylene, Rubber): Flexible and easy to install, foam insulation is budget-friendly, with costs from $0.20 kepada $1.35 per linear foot. Polyethylene foam is moisture-resistant, while rubber foam is mold-resistant and suitable for both hot and cold pipes. Namun begitu, foam may be less effective for extremely hot pipes.
- Closed-cell Insulation: Provides superior thermal performance and resistance to water vapor, often used in high-efficiency applications. It’s flexible and easy to install, similar to foam.
- Other Materials: Mineral wool and aerogel are less common but can be used for specific high-temperature or industrial applications, offering additional options based on need.
Choosing the right material depends on the pipe’s purpose (hot or cold water), lokasi (dalaman, luar, unconditioned spaces), and budget constraints. Contohnya, fiberglass is preferred for hot water pipes in high-temperature environments, while foam is often chosen for DIY projects due to cost and ease of use.
Benefits of Insulating Copper Pipes
The benefits are multifaceted, impacting both operational efficiency and long-term costs:
- Kecekapan Tenaga: Insulation reduces heat loss, which is particularly significant for hot water pipes. Studies, such as from UMass Amherst (Rumah hijau & Floriculture: Pipe Insulation: An energy saving measure | Center for Agriculture, Food, and the Environment at UMass Amherst), estimate annual savings of up to $3.72 per linear foot for a 2-inch diameter pipe, depending on fuel costs and usage hours.
- Preventing Freezing: In cold climates, insulation maintains pipe temperature above freezing, preventing damage. This is crucial for exposed pipes in unheated areas like basements or attics.
- Reducing Condensation: By keeping cold pipes warmer, insulation prevents surface moisture, reducing risks of mold and corrosion, especially in humid environments.
- Extending Pipe Lifespan: Insulation shields pipes from temperature swings and moisture, reducing wear and tear, which can extend the lifespan of copper pipes known for durability.
- Cost Savings: The initial investment in insulation is often offset by reduced energy bills. Sebagai contoh, a DIY installation costing $9.52 in materials can save about $10 annually, with a one-year payback period (Ask Pablo: Is It Really Worth Insulating My Pipes?).
Additional benefits include noise reduction from pipe expansion and contraction, compliance with building codes, and environmental sustainability due to lower energy consumption, given copper’s recyclability.
How to Choose the Right Insulation
Selection depends on several factors:
- For Hot Water Pipes: Materials with high thermal resistance, such as fiberglass or closed-cell foam, are recommended to minimize heat loss. These are ideal for systems operating at high temperatures, like 180°F, as seen in heating applications.
- For Cold Water Pipes: Foam or rubber insulation is preferred to prevent condensation, especially in humid or air-conditioned spaces. These materials offer good moisture resistance, reducing the risk of mold.
- Location Considerations: For outdoor pipes, choose weather-resistant materials like rubber foam, which can withstand UV exposure and temperature extremes. For unconditioned spaces like attics, thicker insulation (cth., 1-inch thickness) is advised for better protection against freezing.
Climate plays a role: in colder regions, thicker insulation is necessary, while in warmer climates, the focus might be on condensation control. Local building codes may also dictate minimum insulation standards, particularly for energy efficiency.
Installation Guide
Proper installation ensures maximum effectiveness:
- Assess and Prepare Pipes: Ensure pipes are clean and dry to prevent moisture trapping under the insulation. Remove any debris or corrosion.
- Measure and Cut Insulation: Use a measuring tape to determine pipe diameter and length. Cut the insulation material to fit, ensuring a snug fit. For copper pipes, note that outside diameter (O.D.) is critical, as seen in guides like Easy Order Sizing Guide for Fiberglass Pipe Insulation – Copper and Iron Piping.
- Wrap Insulation: Wrap the insulation around the pipe, ensuring no gaps. For pre-slit tubes, align the seam face down.
- Secure with Adhesive or Tape: Use duct tape, insulation tape, or adhesive to secure the insulation, applying every foot or two for stability.
- Handle Bends and Joints: Use flexible sections or make angled cuts for bends, ensuring continuous coverage. Secure joints with additional tape to prevent heat loss.
Tools and materials needed include a utility knife, measuring tape, insulation tape, and the chosen insulation material. Regular inspection post-installation is recommended to check for wear or damage.
Common Mistakes and How to Avoid Them
Several pitfalls can reduce effectiveness:
- Improper Sealing: Failing to seal seams can allow moisture ingress, leading to corrosion. Use vapor-proof membranes and ensure tight seals.
- Wrong Material Selection: Using foam for extremely hot pipes can degrade the material, reducing efficiency. Always match material to temperature ratings.
- Neglecting Bends and Joints: These areas can be heat loss points if not insulated properly. Use special fittings or cut insulation to fit tightly.
Avoiding these mistakes involves careful planning, selecting the right material, and following installation guidelines, such as those from How to Install Copper Pipe Insulation.
Maintenance and Troubleshooting
To ensure long-term effectiveness:
- Pemeriksaan Berkala: Check insulation for cracking, lembapan, or wear, especially in exposed areas. Annual checks are recommended.
- Handle Damaged Insulation: Replace damaged sections promptly to maintain thermal performance. Ensure new insulation is compatible with existing material.
- Leak or Corrosion Issues: Inspect for leaks using visual checks, ujian tekanan, or acoustic methods. Address corrosion by adjusting water pH, cleaning pipes, or applying protective coatings.
Troubleshooting involves identifying issues early, such as insulation wear from environmental factors, and addressing them to prevent energy loss or pipe damage.
FAQs and Exact Answers
Based on common concerns from forums and articles, here are the main questions and their exact answers:
| soalan | Exact Answer |
|---|---|
| Should I insulate my copper pipes? | ya, especially for energy savings, freeze protection, and condensation reduction, but assess setup. |
| What type of insulation is best for copper pipes? | Hot water: Fiberglass or high-temperature foam; Cold water: Foam or rubber to prevent condensation. |
| How much does it cost? | Costs range from $0.20–$1.50 per linear foot, with DIY savings offsetting costs within a year. |
| What are the energy savings? | Savings vary; cth., up to $3.72/linear foot annually for 2-inch pipes, depending on fuel costs. |
| How do I install pipe insulation correctly? | Clean pipes, measure and cut insulation, wrap tightly, secure with tape, cover bends and joints. |
| Does insulation affect the pipe’s performance? | Proper insulation enhances performance by maintaining temperature; poor installation can trap moisture, risking corrosion. |
| Is there any risk of damage with insulation? | ya, if not installed correctly, it can trap moisture, leading to corrosion; ensure proper sealing. |
| What is the cost-benefit analysis? | Initial cost (cth., $9.52 for DIY) vs. savings ($8–$12/year), often with a one-year payback. |
These answers address the main concerns, providing precise guidance for users.
Additional Considerations
While insulation is generally beneficial, there are scenarios where it might not be worth it:
- In Well-Insulated Spaces: If pipes are already in a warm, insulated area, heat loss may be minimal, making insulation less cost-effective.
- Short Pipe Runs: For very short distances, the energy saved might not justify the cost.
- Potential Drawbacks: While insulation is generally beneficial, some debate exists on whether it can increase heat loss in certain scenarios due to conduction through the insulation, especially if not installed correctly. This highlights the importance of proper material choice and installation.
Kesimpulan
Copper pipe insulation is a practical and cost-effective solution for homeowners or businesses looking to boost their plumbing system’s efficiency and durability. By minimizing heat loss, preventing freezing, and reducing condensation, it not only saves energy but also cuts down on costs. With various insulation options and straightforward installation steps available, it’s an accessible upgrade for DIY enthusiasts and anyone aiming to enhance their energy efficiency. Investing in copper pipe insulation is a smart choice that pays off in both comfort and savings.
