설명

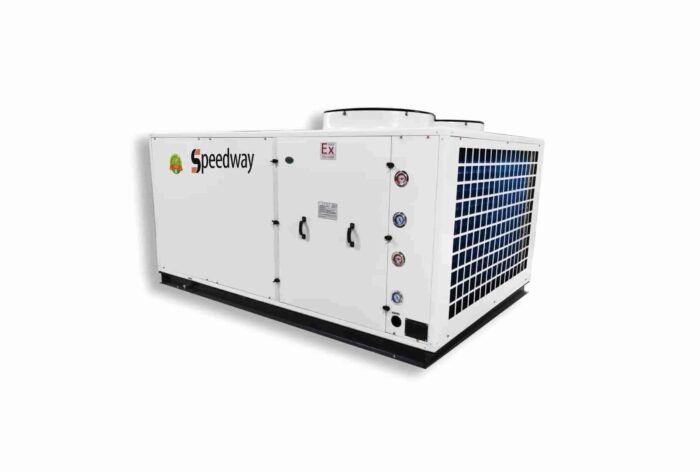

방폭형 에어컨이란??
Explosion-proof air conditioner is a special cooling system to operate safely in environments where there’s a risk of explosion due to the presence of flammable gases, 증기, 아니면 먼지.
These 에어컨 are built with materials and features that prevent sparks or other ignition sources from causing explosions in hazardous areas.
방폭형 에어컨 분류
방폭형 에어컨은 작동하는 위험한 환경에 따라 분류됩니다.. 분류는 일반적으로 존재하는 유해 물질의 유형과 폭발 발생 가능성을 기반으로 합니다..
클래스 I: 이 분류는 폭발성 또는 발화성 혼합물을 생성하기에 충분한 양의 인화성 가스 또는 증기가 존재하는 위치와 관련됩니다..
클래스 I은 다음과 같이 더 세분화됩니다.:
클래스 I, 분할 1 (사업부 1): 정상적인 작동 조건에서 가스 또는 증기의 가연성 농도가 존재할 가능성이 있는 영역.
클래스 I, 분할 2 (사업부 2): 정상적인 작동 조건에서 가스나 증기의 가연성 농도가 존재할 가능성이 없는 영역, 하지만 가끔 있을 수도 있음.
클래스 II: 이 분류는 잠재적으로 폭발성 혼합물을 생성하기에 충분한 양의 가연성 분진이 존재하는 위치에 적용됩니다..
클래스 II는 다음과 같이 더 세분화됩니다.:
클래스 II, 분할 1 (사업부 1): 가연성 먼지가 정기적으로 위험한 대기를 생성하기에 충분한 양으로 존재하는 지역.
클래스 II, 분할 2 (사업부 2): 일반적으로 가연성 먼지가 위험한 대기를 생성할 만큼 충분한 양으로 존재하지 않는 지역, 그러나 때때로 축적되어 위험해질 수 있습니다..
클래스 III: 이 분류는 발화성 섬유 또는 날아다니는 물질이 존재할 수 있지만 발화성 혼합물을 생성하기에 충분한 양으로 공기 중에 부유할 가능성이 없는 위치를 다룹니다..
클래스 III은 다음과 같이 더 세분화됩니다.:
클래스 III, 분할 1 (사업부 1): 정상적인 작동 조건에서 위험한 대기를 생성하기에 충분한 양의 발화성 섬유 또는 날아다니는 물질이 존재하는 지역.
클래스 III, 분할 2 (사업부 2): 발화성 섬유나 날아오는 물질이 일반적으로 위험한 대기를 생성하기에 충분한 양으로 존재하지 않는 지역, 그러나 비정상적인 조건에서는 축적되어 위험해질 수 있습니다..
방폭형 에어컨 매개변수
모델 | BKFR-26GW/1HP | BKFR-35GW/1.5HP | BKFR-50GW/2HP | BKFR-72GW/3HP |
---|---|---|---|---|
기능 | 시원함과 따뜻함 | 시원함과 따뜻함 | 시원함과 따뜻함 | 시원함과 따뜻함 |
냉각 용량 전력 | 2650여 | 3500여 | 5000여 | 7200여 |
난방능력 전력 | 2920여 | 3850여 | 5800여 | 8000여 |
전원공급장치 | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220/380V/50Hz |
냉각 입력 전원 | 810여 | 1068여 | 1600여 | 2350여 |
난방 입력 전원 | 810여 | 1200여 | 1680여 | 2650여 |
전기 화력 | 900여 | 1000여 | 1200여 | 1000여 |
용량(m3/h) | 541 | 631 | 851 | 1101 |
소음(실내 실외) 데시벨 | 35-40/40-49 | 37-42/42-51 | 32-40-53 | 39-48-57 |
방수등급 | IPX4 | IPX4 | IPX4 | IPX4 |
적합한 지역 | 10-18 m2 | 15-24 m2 | 22-34 m2 | 35-50 m2 |
실내기 치수 | 776*268*186mm | 844*300*183mm | 940*298*200mm | 1078*326*253mm |
실외기 치수 | 776*540*320mm | 848*540*320mm | 995*700*396mm | 980*790*427mm |
일반 에어컨과 방폭형 에어컨의 가장 큰 차이점은 무엇인가요??
안전 설비
일반 에어컨:
Standard air conditioners don’t incorporate safety features to prevent explosions in hazardous environments.
방폭형 에어컨:
Explosion-proof air conditioners have safety features such as sealed enclosures for electrical components, 폭발 방지 재료, and special motors and controls that minimize the risk of sparking or overheating in potentially explosive atmospheres.
사용 목적
일반 에어컨:
표준형 에어컨은 주거용으로 적합합니다., 광고, and industrial places where there is no risk of explosion from flammable gases, 증기, 아니면 먼지.
방폭형 에어컨:
Explosion-proof air conditioners are specifically used in hazardous environments where the presence of flammable gases, 증기, 또는 가연성 분진은 폭발 위험이 있습니다.. 그들은 석유 및 가스와 같은 산업에서 일반적으로 사용됩니다., 화학 처리, 의약품, 그리고 채굴.
인클로저 및 밀봉
일반 에어컨:
Standard Air Conditioners have open or partially enclosed electrical components, 스파크나 아크가 빠져나가 잠재적으로 가연성 물질을 발화시킬 수 있습니다..
방폭형 에어컨:
방폭형 에어컨은 스파크를 방지하기 위해 전기 부품을 완전히 밀봉한 인클로저를 갖추고 있습니다., 호, 또는 주변 환경에서 유해 물질이 빠져나와 점화되는 열.
재료 및 건설
일반 에어컨:
표준 에어컨은 플라스틱이나 경량 금속과 같은 재료를 사용하여 제작되는 경우가 많습니다., 위험한 환경의 가혹함을 견디지 못하거나 폭발로부터 충분한 보호를 제공하지 못할 수 있습니다..
방폭형 에어컨:
방폭형 에어컨은 스테인레스 스틸이나 알루미늄 합금과 같은 견고한 소재로 제작됩니다., 강화된 내구성과 내부식성을 제공하며 위험 지역의 조건을 견딜 수 있습니다..
비용 및 투자:
일반 에어컨:
Standard Air Conditioners are generally more affordable for use in non-hazardous environments.
방폭형 에어컨:
Explosion-proof air conditioners are special equipment for use in hazardous locations, 그리고 그 자체로, 일반적으로 특수한 구조로 인해 초기 비용이 더 높습니다., 구성요소, 및 인증 요구 사항.
FAQs
1. Can explosion-proof air conditioners operate in extreme temperatures?
예, many explosion-proof air conditioners can operate effectively in extreme temperatures, ranging from very low temperatures in arctic environments to high temperatures in desert regions. These units are equipped with robust components and insulation to withstand harsh temperature conditions.
2.Do explosion-proof air conditioners require specialized installation?
예, should have expertise person, who is familiar with the requirements of hazardous locations and applicable regulatory standards, to make the installation. Proper installation ensures the units are positioned correctly and follow all safety measures.
3. Can explosion-proof air conditioners be used in outdoor environments?
예, explosion-proof air conditioners can be used in outdoor environment. These units have weatherproof enclosures and components to withstand exposure to elements such as rain, wind, and sunlight.
4. What are the maintenance requirements for explosion-proof air conditioners?
Maintenance requirements include: routine checks, filter replacement, cleaning of components, and inspection of seals and enclosures to ensure continued safe operation.
Maintenance procedures should be carried out according to 에어컨 제조업체 regulatory guidelines.
