Introducción
Against the backdrop of the rapid development of cold chain logistics, the cold room ante-room, a crucial yet often overlooked facility, comes into focus.This seemingly ordinary transitional space connecting the inside and outside is, in fact, like the throat of the human body.
Its design and operational status directly impact the «salud» of the entire cold room system. It is not only the mandatory passage for goods but also a key buffer zone that safeguards temperature, ensures quality, enhances efficiency, and conserves energy.
This article will delve into the cold room ante-room, revealing its core value as a «temperature buffer.»

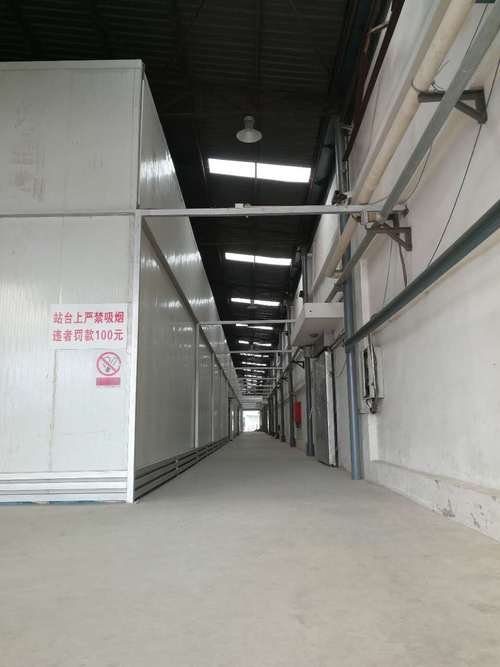

Anteroom
Definition and Physical Composition
1. Definición
A cold room ante-room is an enclosed, insulated passageway situated between a cold room chamber and the external environment (such as a loading dock, sorting area, processing room, or another chamber).
It is a controlled intermediate temperature zone to provide a gradual transition between two environments with vastly different temperatures, preventing direct and intense thermal exchange.
2. Location and Types
Ante-rooms are located at the «gateway» of a cold storage facility. Based on the temperature of the cold room chambers they serve, they are mainly categorized into:
-
Ambient Ante-room: Connects the outdoors to a high-temperature chamber (＞0°C), usually maintained at 10-15°C.
-
Chilled Ante-room: Connects the outdoors or an ambient area to a chill store (0~4°C), generally set between 0~7°C.
-
Freezer/Low-Temp Ante-room: Connects a chill store or the outdoors to a freezer warehouse (≤-18°C), typically set between -5~0°C. Some deep-freeze warehouses (＜-30°C) may even have ante-rooms around -10°C for stepwise temperature reduction.
3. Core Components
A fully functional ante-room integrates several technologies:
-
Structure and Insulation: Like the main cold room, it is constructed using sandwich panels (Polyurethane/Rockwool core) to ensure excellent thermal insulation.
-
Door Systems: These are the «checkpoints» of the ante-room. Generalmente, uses high-speed roll-up door (opens quickly to minimize open time) on the side facing the loading dock, while uses insulated electric sliding door or electric vertical lift door (high sealing capability) on the side facing the cold room chamber.
Automatic Roll-up Door
-
Ancillary Equipment: High-efficiency air curtains are essential above doors to create an air barrier when doors are open. Lighting uses low-temperature LED lamps for cold, ambientes húmedos. The floor requires anti-slip treatment and must be kept dry.
Funciones centrales
1. Temperature Buffer and Energy Guardian
This is the most fundamental role of the ante-room.
When a cold room door opens directly to the outside, the instant, intense exchange of hot and cold air causes drastic temperature fluctuations and forces refrigeration units to work at high intensity, spiking energy consumption.
The ante-room mitigates this by splitting one intense exchange into two much gentler ones. Statistics show that a well-designed ante-room can reduce cold loss due to door openings by encima 70%, making it one of the most effective energy-saving measures for cold room.
2. Logistics Hub and Efficiency Node
The ante-room is the «stage» for cold chain operations.
After unloading from the dock, goods can be palletized, labeled, information-checked, and sorted for different temperature zones here.
It provides space for forklifts to turn and maneuver, ensuring an orderly «unload-stage-store» workflow, preventing goods from being exposed on the dock or causing congestion at the chamber entrance, thereby significantly boosting overall logistics efficiency.

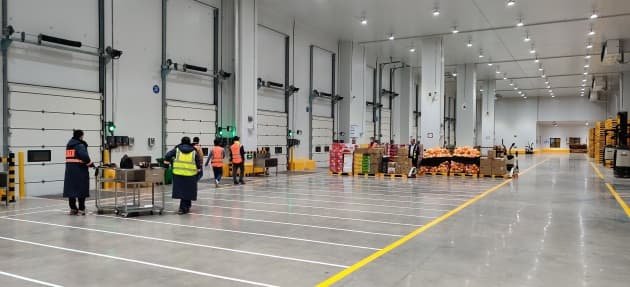

Logistic Hub
3. Quality Guardian and Safety Barrier
-
For Goods: For fresh produce like fruits and vegetables, moving directly from a chill store to a warm environment causes «cold shock,» accelerating spoilage. The ante-room provides a gentle warming zone. For frozen products, waiting in a low-temperature ante-room upon retrieval prevents immediate surface condensation («sweating»), ensuring dry packaging and product quality.
-
For Personnel: It provides an acclimatization zone for workers, reducing physical discomfort (p.ej., dolores de cabeza, joint pain) and safety risks (slowed reaction time) associated with sudden entry into/ext from extreme cold. Clear pathways also minimize collision risks between people and equipment.
4. Hygiene Protector and Contamination Barrier
As a physical barrier, the ante-room effectively blocks outdoor dust, rain, pests, and unauthorized personnel from directly entering the storage chambers, which often require high cleanliness, thereby providing a better sanitary environment for stored goods.
Scientific Use and Management
Even the best facilities require proper operation. Poorly managed ante-rooms can become new bottlenecks and energy drains.
1. Temperature Management: It is imperative to strictly maintain the designated ante-room temperature.
Real-time monitoring via temperature control systems ensures it functions effectively as a buffer. Simultaneously keeping both the exterior and interior doors open for extended periods is strictly prohibited.
2. Goods Management: Clearly define the ante-room as a «pass-through» área, not a «almacenamiento» área.
Establish strict operating procedures limiting goods dwell time (p.ej., not exceeding 15-30 minutos) and absolutely prohibit blocking main aisles and emergency exits.
Goods should be neatly arranged and clearly labeled.
Pass-through Area
3. Aisle and Safety Management:
-
Keep Clear: Need regular inspections to ensure no obstructions.
-
Slip and Collision Prevention: Promptly clear ice chips and water spills from the floor. Install wall bumpers.
-
Personnel Protection: Workers must wear appropriate cold-weather gear, even if working only in the ante-room.
4. Equipment Maintenance and Energy Management:
-
Door and Air Curtain Coordination: Ensure air curtains activate automatically and function effectively when chamber doors open.
-
Mantenimiento regular: Check door seal integrity, hinge lubrication, and regularly defrost evaporator.
-
Energy-Saving Habits: Implement «lights off when leaving,» and promptly report and repair any damaged insulation to prevent «cold loss».
Conclusión
The cold room ante-room, this seemingly auxiliary space, actually integrates four major functions: buffering for energy savings, logistics coordination, quality assurance, and safety protection. It is an indispensable component of modern, cámara frigorífica eficiente.
It embodies the conceptual shift in cold chain logistics from «rough storage» a «precise temperature zone management.» In today’s pursuit of an unbroken «cadena de frío,» the scientific design, standardized operation, and meticulous management of the ante-room directly reflect the professionalism of cold room operators.
In essence, an efficient, tidy, and well-managed ante-room is a microcosm and guarantee of the overall efficiency, seguridad, and cost-effectiveness of the entire cold room operation.
Neglecting it can undermine the effectiveness of expensive refrigeration equipment and strict temperature controls. Prioritizing it, however, can enhance the smoothness and stability of the entire cold chain link.
Though small in size, the ante-room truly holds significant sway over the overall picture of cold chain quality and cost.
