طرق اتصال الكابلات والأسلاك

Properly connecting cables and wires is essential for ensuring the safety and efficiency of refrigeration system, and also other electrical systems. Whether you’re working on a DIY project, repairing appliance, or installing new electrical wiring, understanding the various methods for connecting cables and wires is crucial.

This guide provides an overview of the most common ways to make these connections, including their applications, advantages, and disadvantages.

By the end, you’ll know how to choose the right connection method for your specific needs.

Common Methods for Connecting Cables and Wires

Crimp Splice

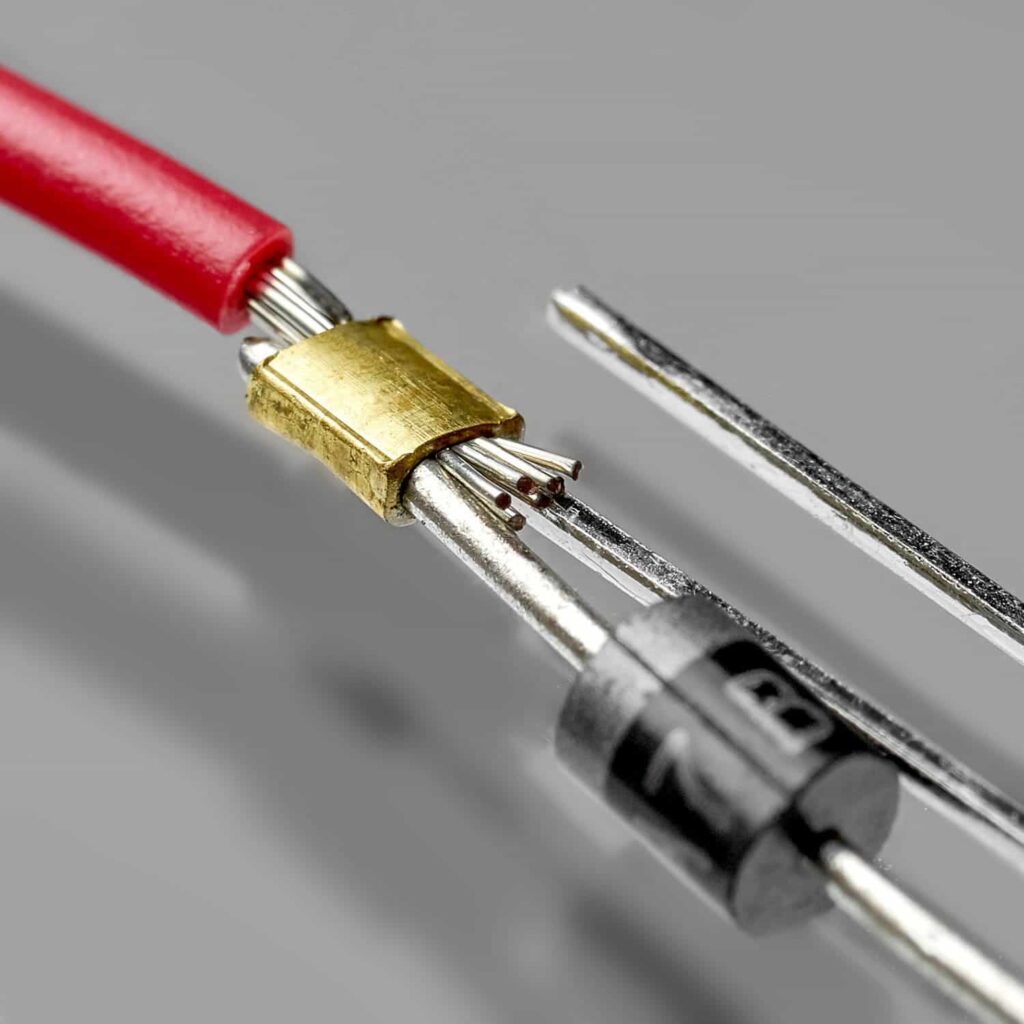

وصف: A crimp splice is a connector that joins two wires by compressing the connector onto the wires, creating a secure electrical connection. It’s a simple and widely used method.

Tools Required:

• Wire stripper

• Crimping tool

How to Use:

1. Strip the insulation from the ends of the wires to be joined.

2. Insert the wires into the crimp splice connector.

3. Use the crimping tool to compress the connector onto the wires, ensuring a tight connection.

Applications: Commonly used in electrical installations, automotive wiring, and other settings where need reliable and quick connection.

مزايا:

• سهل الاستخدام

• Requires minimal tools

• Provides a secure connection

سلبيات:

• Not waterproof

• May not be suitable for high-vibration environments

Solder Sleeves

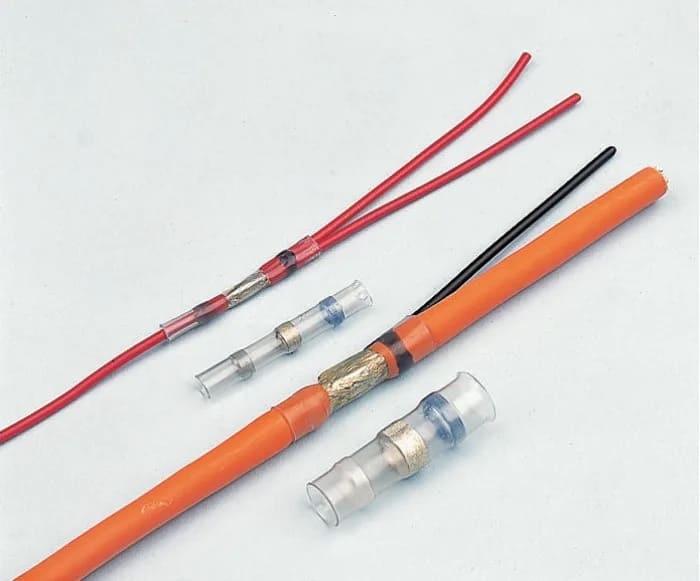

وصف: Solder sleeves are connectors with an inner lining of solder that melts when heated, creating a soldered joint between wires. They also include heat-shrink tubing for insulation.

Tools Required:

• Wire stripper

• Heat gun or soldering iron

How to Use:

1. Strip the insulation from the wire ends.

2. Slide the solder sleeve over one wire.

3. Insert the second wire into the sleeve.

4. Apply heat to the sleeve, melting the inner solder to join the wires.

5. Allow the connection to cool and solidify.

Applications: Used in aerospace, السيارات, and industrial applications where need permanent and robust connection.

مزايا:

• Provides a strong, permanent connection

• More reliable than crimp splices in certain environments

سلبيات:

• Requires skill and experience

• Not reusable

• Time-consuming

Wire Nuts

وصف: Wire nuts are twist-on connectors that secure wires by twisting the connector onto the stripped ends, commonly used in residential wiring.

Tools Required:

• Wire stripper

• Screwdriver (for some types)

How to Use:

1. Strip the insulation from the wire ends.

2. Twist the wires together (optional for some applications).

3. Screw the wire nut onto the twisted wires, ensuring all wires are fully inside.

Applications: Widely used in residential electrical wiring for connecting multiple wires in junction boxes.

مزايا:

• Very easy to use

• Not expensive

• Widely available

سلبيات:

• Not suitable for outdoor or wet locations unless waterproof

• Can loosen over time if not installed properly

Ultrasonic Welding

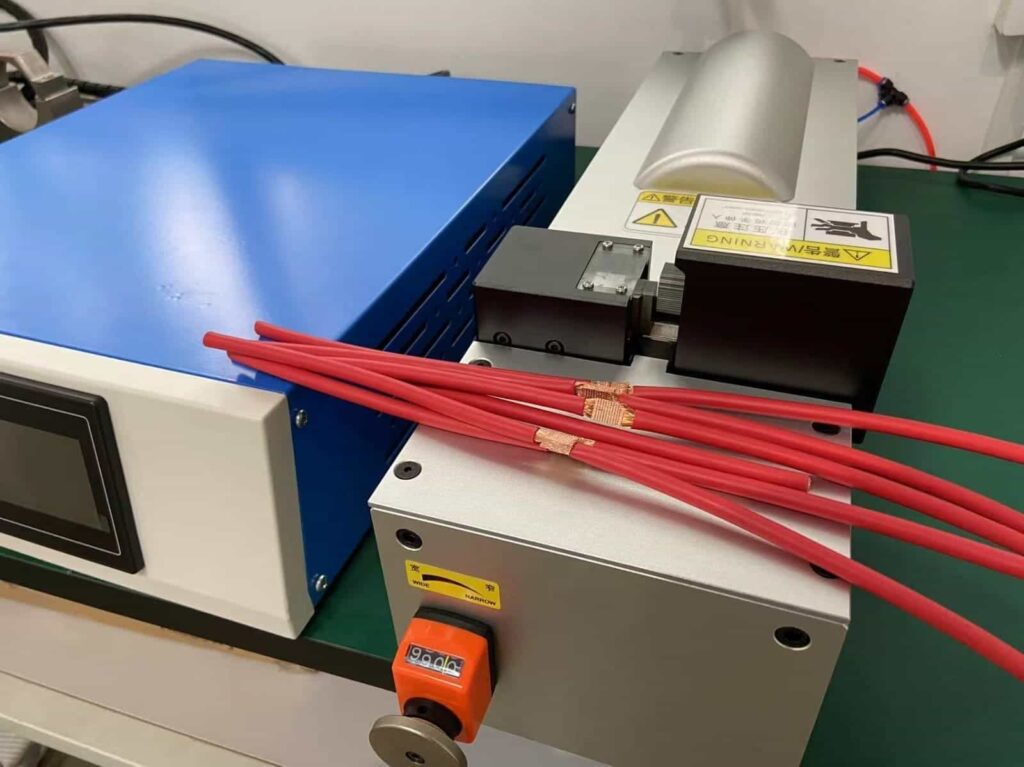

وصف: Ultrasonic welding uses high-frequency vibrations to join wires without melting the insulation, creating a strong, clean connection.

Tools Required:

• Ultrasonic welding machine

How it Works:

1. Place the wires into the welding machine.

2. The machine applies ultrasonic vibrations and pressure, welding the wires together by generating heat at the interface.

Applications: Used in automotive, الفضاء الجوي, and electronics manufacturing for reliable connections.

مزايا:

• Creates a clean, strong weld

• No heat damage to surrounding areas

• Fast process

سلبيات:

• Requires expensive equipment

• Not suitable for all wire types

Push-In Wire Connectors

وصف: Push-in wire connectors allow wires to be inserted directly into the connector, often with a clear shell for visual verification.

Tools Required:

• Wire stripper

How to Use:

1. Strip the insulation from the wire ends.

2. Push the wires into the connector until they lock into place.

Applications: Used in residential wiring, especially in tight spaces, as they are compact.

مزايا:

• Quick and easy to install

• No twisting required

• Visual verification of connection

سلبيات:

• May not be as secure if not installed correctly

• Limited to specific wire gauges

Screw Terminals

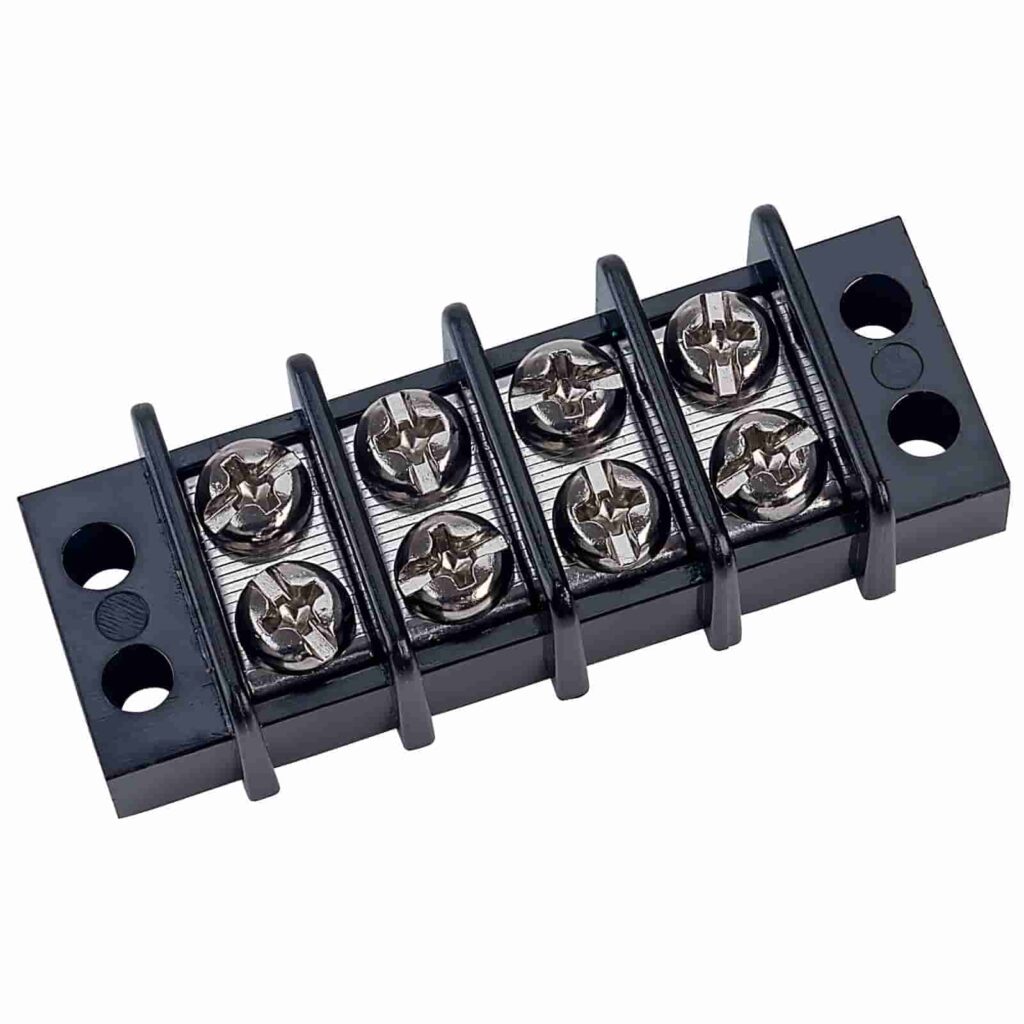

وصف: Screw terminals are found on devices like light switches and outlets, where wires are secured by looping them around a screw.

Tools Required:

• Wire stripper

• Screwdriver

How to Make the Connection:

1. Strip the insulation from the wire end.

2. Form a clockwise loop with the stripped wire.

3. Hook the loop around the screw terminal.

4. Tighten the screw to secure the wire.

Applications: Standard in residential and commercial electrical installations.

مزايا:

• Simple and straightforward

• Easy to disconnect and reconnect

سلبيات:

• Can loosen over time if not tightened properly

• Not ideal for high-vibration areas

Soldering

وصف: Soldering involves melting solder to join wires, creating a permanent electrical connection.

Tools and Materials Needed:

• Wire stripper

• Soldering iron

• Solder

• Heat shrink tubing (خياري)

Step-by-Step Guide:

1. Strip the insulation from the wire ends.

2. Clean the wire ends if necessary.

3. Tin the soldering iron by applying a small amount of solder to the tip.

4. Hold the wires together and apply the soldering iron to the joint.

5. Apply solder to the joint, allowing it to flow around the wires.

6. Remove the soldering iron and let the joint cool.

7. Inspect the joint; it should be shiny and smooth.

8. Apply heat shrink tubing for insulation if needed.

Applications: Used in electronics, السيارات, and applications required permanent connections.

مزايا:

• Strong, permanent connection

• Suitable for high-vibration environments

سلبيات:

• Requires skill and practice

• Time-consuming

• Heat may damage sensitive components

Special Connectors

Underground/Waterproof Connectors

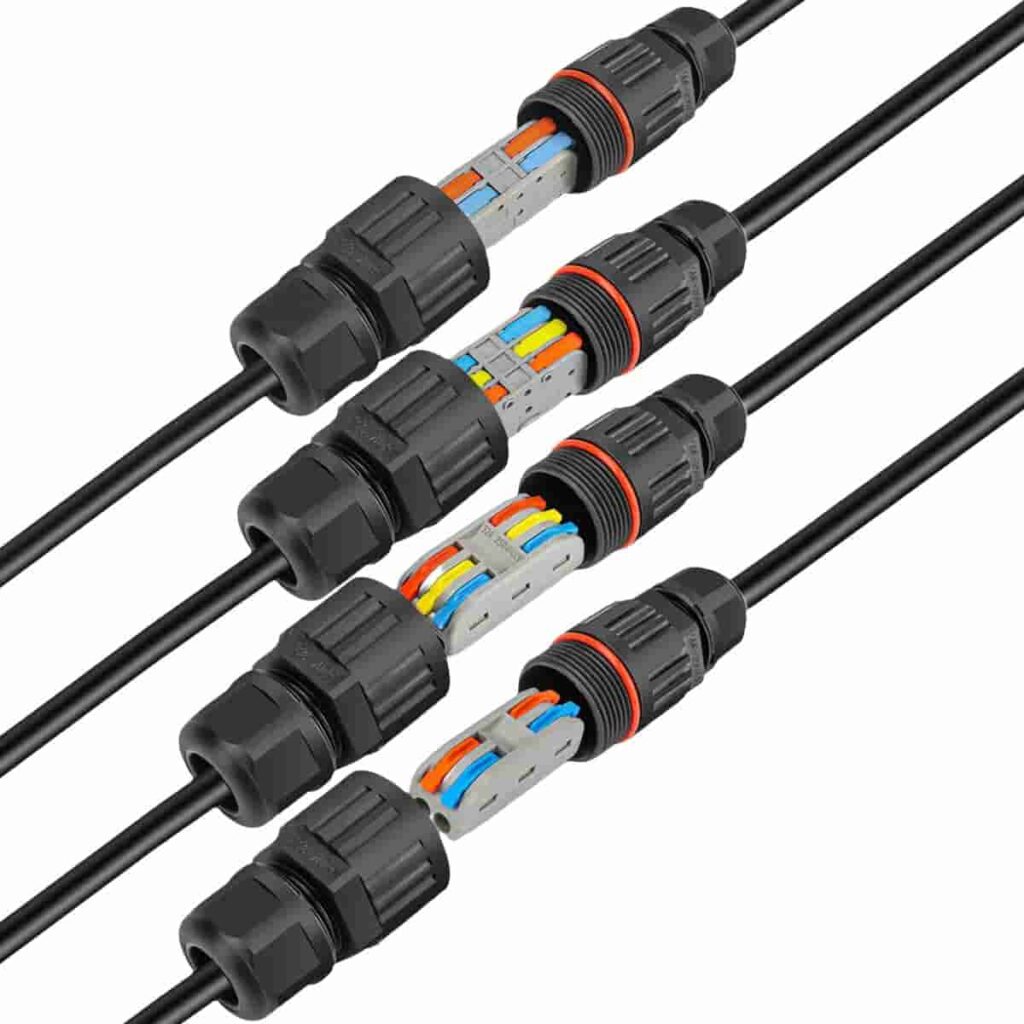

وصف: These connectors protect wire connections from moisture, especially for outdoor or underground use.

Applications: Sprinkler systems, outdoor lighting, pet containment systems.

مزايا:

• Waterproof protection

• Durable in harsh environments

سلبيات:

• More expensive

• May require specific tools

PCB Connectors (على سبيل المثال, RJ45)

وصف: PCB connectors, like RJ45, connect wires to printed circuit boards, commonly used for Ethernet cables.

Tools Required:

• Crimping tool (for RJ45)

How to Use (for RJ45):

1. Strip the Ethernet cable to expose the wires.

2. Arrange the wires in the correct order.

3. Insert the wires into the RJ45 connector.

4. Crimp the connector onto the cable.

Applications: Networking, telecommunications.

مزايا:

• Standardized for specific applications

• Easy to install with proper tools

سلبيات:

• Specific to certain cables and applications

Safety Considerations

Safety is paramount when working with electrical wires. Key considerations include:

• Turn Off Power: Always ensure power is off before working, using a non-contact voltage tester.

• العزل المناسب: Insulate all connections to prevent short circuits and shocks.

• Secure Connections: Loose connections can cause arcing and fires; ensure all connections are tight.

• Choose Appropriate Methods: Select methods based on environment, اهتزاز, and permanence needs.

• Consult Professionals: For complex or high-voltage projects, hire a licensed electrician.

Connection Methods Comparison Table

طريقة	Tools Required	Applications	مزايا	سلبيات
Crimp Splice	Wire stripper, crimping tool	الكهرباء, السيارات	Easy, minimal tools, secure	Not waterproof, vibration-sensitive
Solder Sleeves	Wire stripper, heat gun/soldering iron	Aerospace, السيارات	Strong, permanent	Requires skill, not reusable
Wire Nuts	Wire stripper, screwdriver	Residential wiring	Easy, inexpensive, widely available	Not for wet locations, may loosen
Ultrasonic Welding	Ultrasonic welding machine	Automotive, electronics	Clean, strong, سريع	Expensive equipment, limited use
Push-In Connectors	Wire stripper	Residential wiring	Quick, no twisting, compact	Less secure if improper, gauge-limited
Screw Terminals	Wire stripper, screwdriver	Electrical devices	Simple, reconnectable	May loosen, vibration-sensitive
Soldering	Wire stripper, soldering iron, solder	Electronics, السيارات	Strong, permanent	Skill-intensive, time-consuming
Waterproof Connectors	Varies	في الهواء الطلق, underground	Waterproof, متين	Expensive, tool-specific
PCB Connectors (RJ45)	Crimping tool	Networking	Standardized, easy with tools	Application-specific

خاتمة

Connecting cables and wires effectively requires understanding the various methods available, from simple wire nuts to advanced ultrasonic welding. Each method has unique advantages and is suited to specific applications.

By following this guide and prioritizing safety, you can ensure reliable and secure electrical connections for your projects. Refer to the linked resources for further details and confidently tackle your wiring tasks.

أي تعليقات?

نرحب ترك رسالة أو إعادة نشر.
