مسافة أطول فائقة بين غرفة البرد ومحلول وحدة التكثيف

At CHINA SPEEDWAY, we provide custom refrigeration products solutions for our clients. Recently,we have client buying cold room unit, worked for a cold room project with super longer distance between cold room and outdoor condensing unit. في هذه المقالة, we will give you actual example how did we work in this cold room project and keep stored products fresh and durable, so as a reference for customers who need similar cold room projects.

Clients specifications

Clients need to accurately control the cold room temperture scope to avoid any damage for the goods, here are the details about this cold room project.

Country: الإمارات العربية المتحدة

درجة الحرارة المحيطة: Max 50~55°C ( Maximum 15 days for total in summer)

حجم الغرفة الباردة: 7X3.5X2.5m (length x width x height)

Cold room application: Store medicine

درجة حرارة الغرفة الباردة: Constant 2~8°C

Inverter condensing unit location: On the roof (totally six floors)

Cold room location: قبو

Direct distance between roof and basement: 25م

Basic Solution

Inverter Condensing unit (outdoor unit): 5HP(قوة حصان), 220الخامس, 1phase 50Hz, R404 refrigerant. with oil return bend protection system, with 50m cable connect to display screen board. As max ambient temperature is 50~55°C, so must use bigger size condensing unit (use 5HP but not 4HP), also need a shelder to lower the temperature around the unit.

Evaporator unit (الوحدة الداخلية): 6.5HP 220V, 1 phase 50Hz

لوحة الغرفة الباردة: 150mm thickness PU sandwich panel with 0.35mm galvanized steel

باب الغرفة الباردة: 150mm thickness PU sandwich panel with 10cm height threshold ( for better airtightness), حجم الغرفة الباردة–1.8×0.9م (height x width)

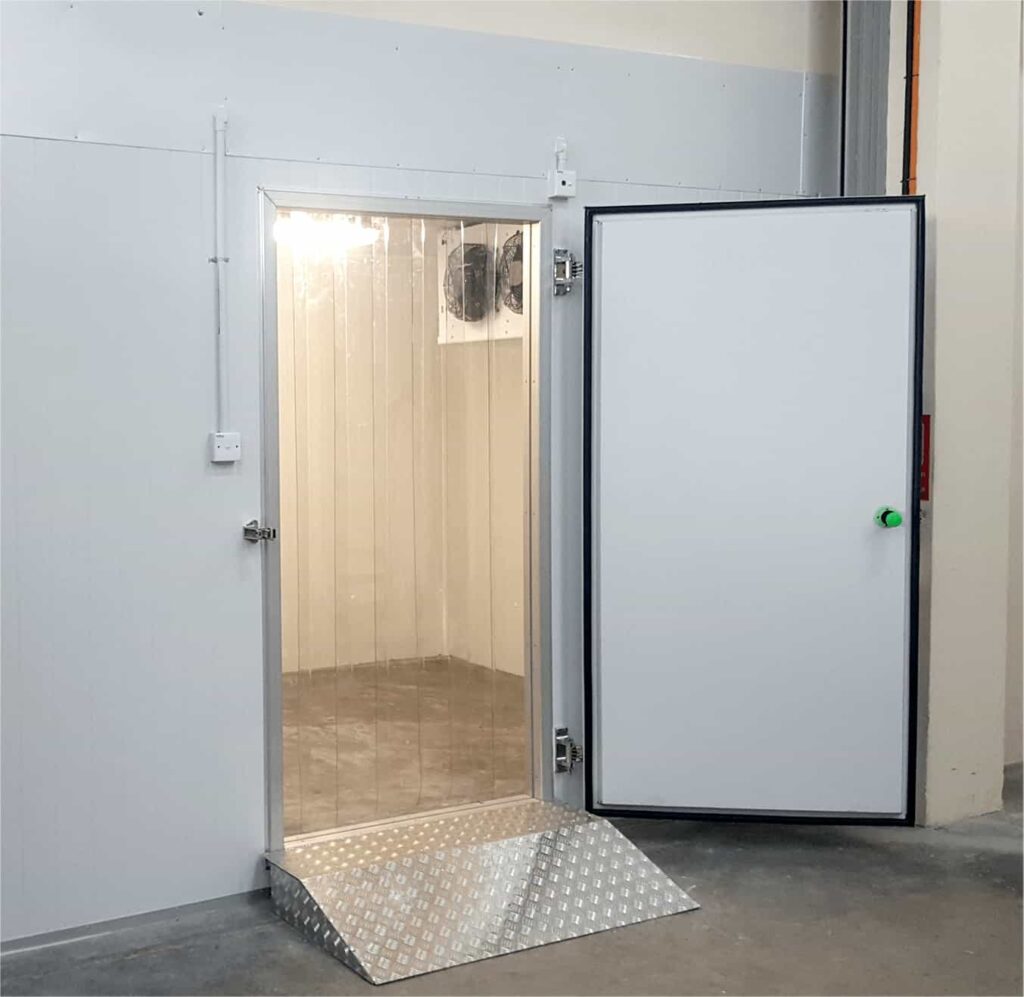

Cold room door with threshold

Specific Solution

1. Use oil return bend system ( make several oil return bends when the pipe installation) , max preparing 50m cable to avoid any short of length, see the draft at below:

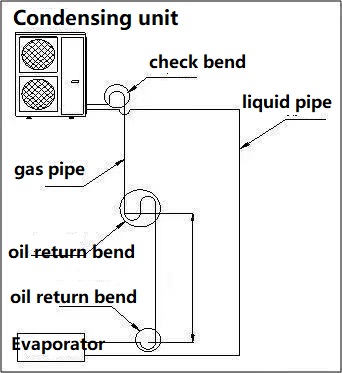

Pipe Installation Drawing

2. Prepare 2 sets refrigeration equipments ( each set included 1pc condensing unit and 1pc evaporator unit), to avoid any sudden damage.

3. Prepare a plastic air stripe curtain to avoid any cooling air to waste.

4. Minimize the installation length, because more longer means more chance to loss cooling air.

5. Use sealant to get better airtightness, because room temperature need constant 2~8°C

6. Prepare a 20~25kva diesel generator (which can supply both 220V and 380V) for backup when any sudden outage.

7. Use a window balance with 220V 50HZ to balance room inside and outside pressure.

8. Use one or two LED cold room light to keep the light clearly inside of the cold room.

9. Use LED display screen board for inverter condensing unit to monitor the cold room temperature in real time.

LED Display Screen Board

Need custom cold room solution?

At “CHINA SPEEDWAY”, we are experts in providing custom cold room solution for different applications. Room temperature can be +15~-40°C, if you need another special temperature, can show us all requirements accordingly.

We will support you how to make specifically installation and provide drawings for cold room panel assembly, meanwhile give you all tips about cold room working properly and last longer lifetime.

Feel free to contact us for more details or to discuss your specific needs. We look forward to helping you optimize your systems with high-quality, precision-engineered cold room solutions.
